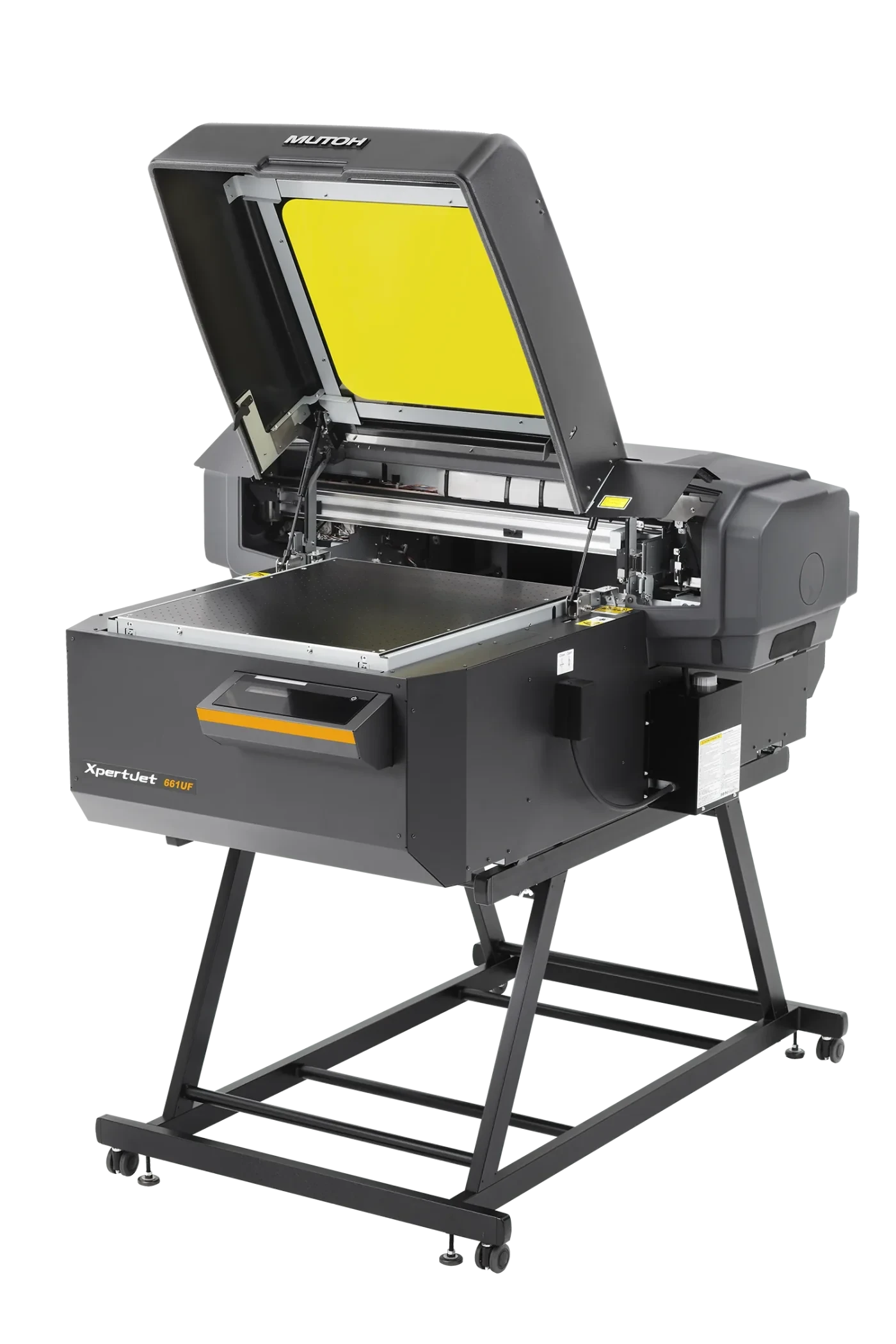

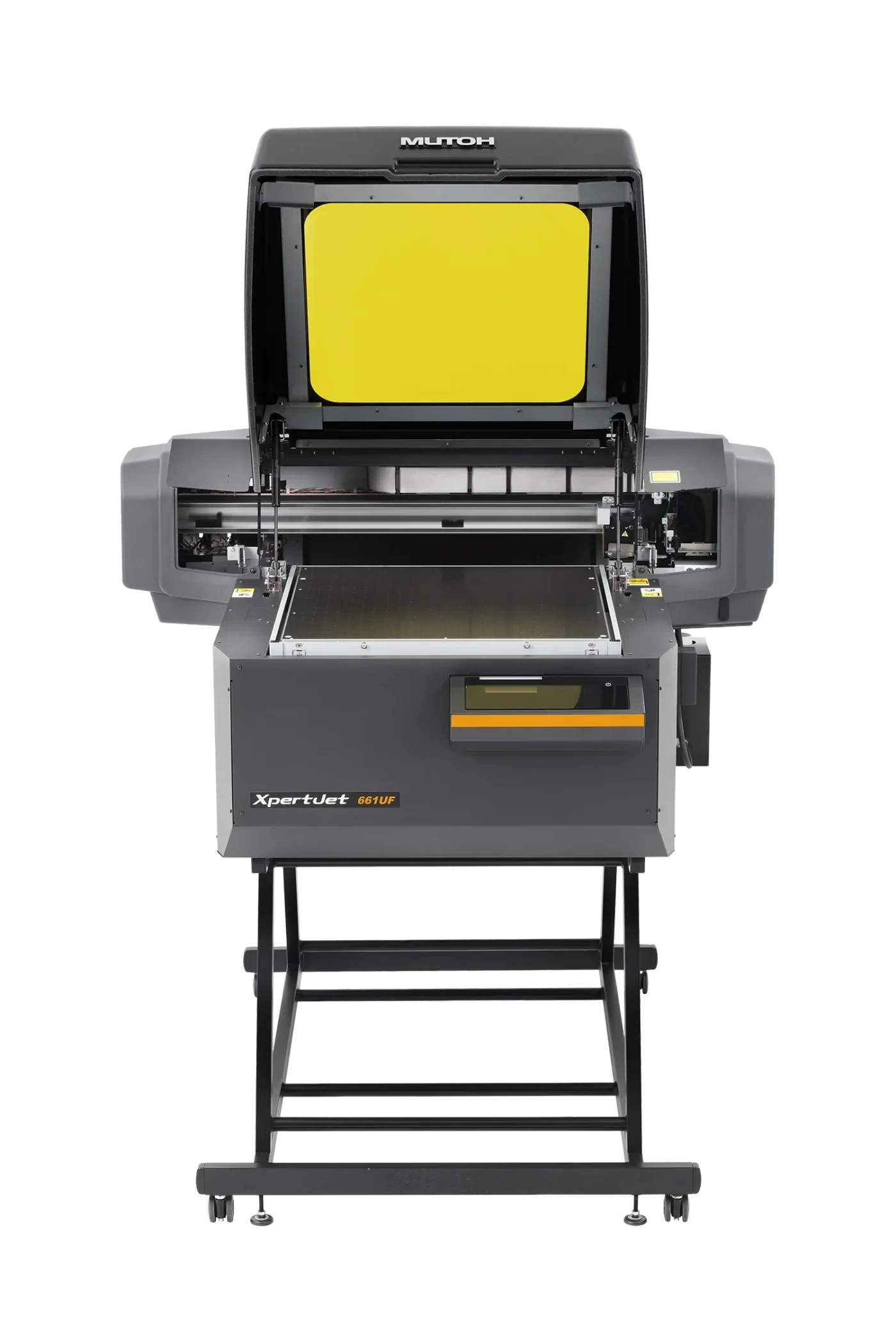

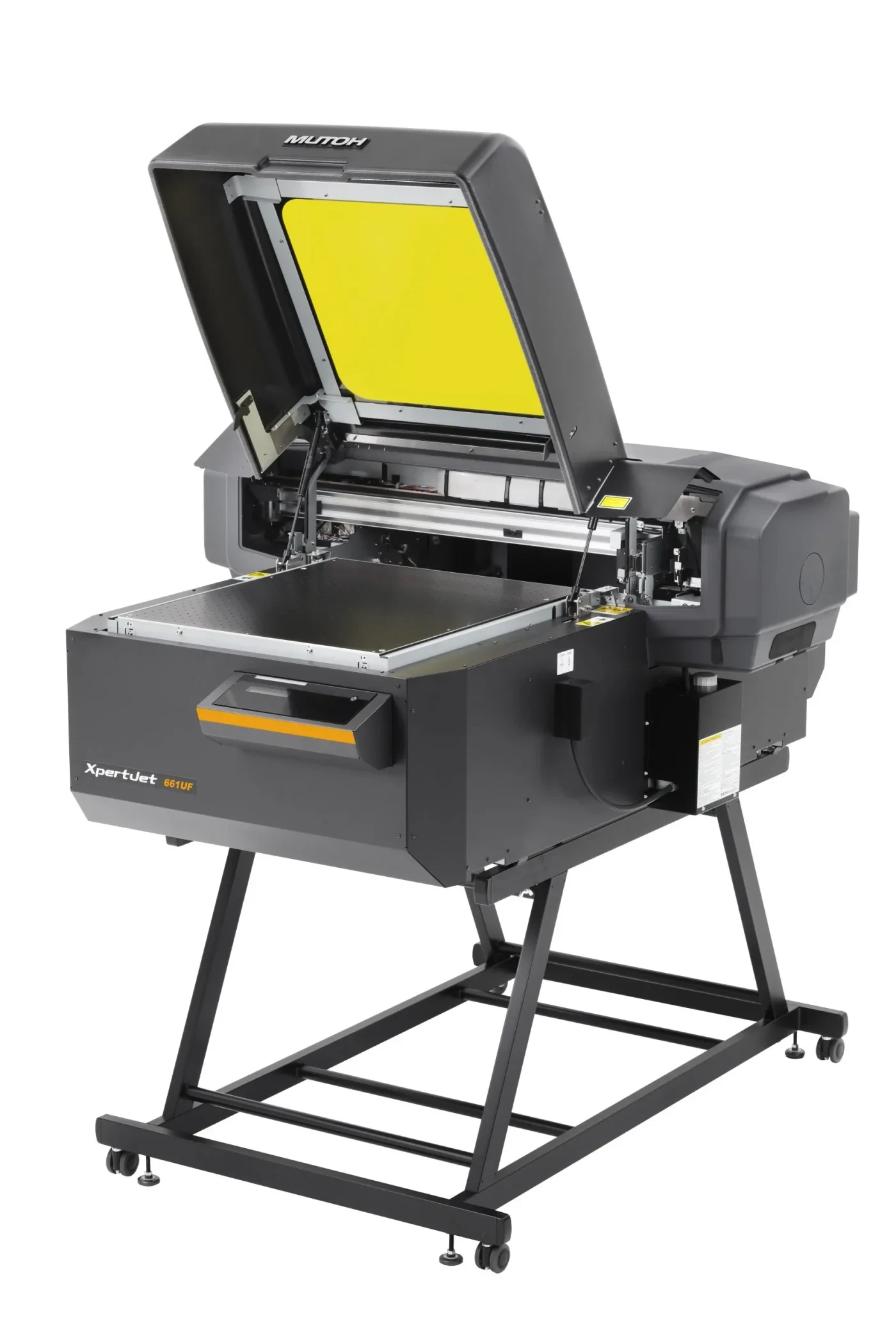

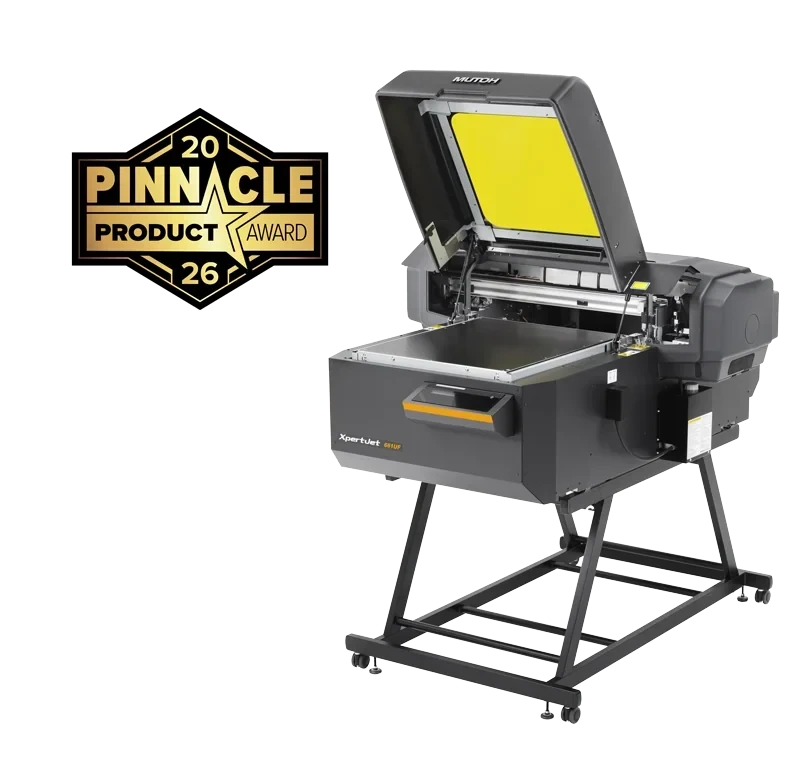

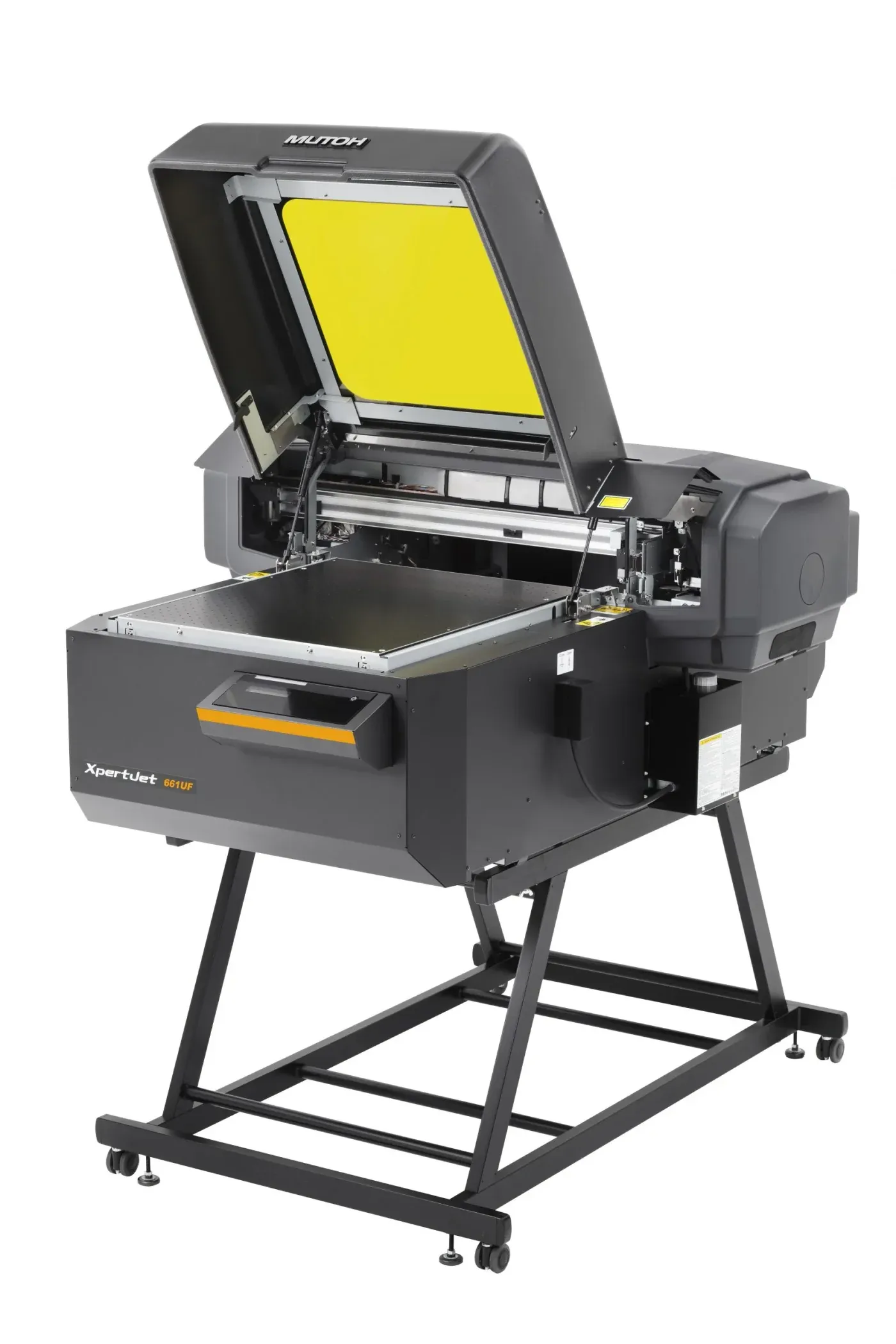

XpertJet 661UF
XpertJet 661UF
UV-LED Flatbed Printer
The MUTOH XpertJet 661UF is a UV-LED flatbed printer that delivers raised detail and rich color on virtually any surface. It's ideal for promotional products, awards, phone cases, drinkware, personalized gifts, lenticular prints, and specialty items.
Fill out the form below to request information about the XpertJet 661UF.
Fields marked with an asterisk(*) are required.
Top 5 Items to Print with XpertJet 661UF
Product Details
The XpertJet 661UF features a larger printable surface area, updated touchscreen panel, improved LED lamp, and more. It supports layered printing to create fine textured prints and ADA-compliant Braille, instantly adding value to any print. Paired with Local Dimming Control Technology, the printer can add glossy finishes in a single pass.
Materials & Software

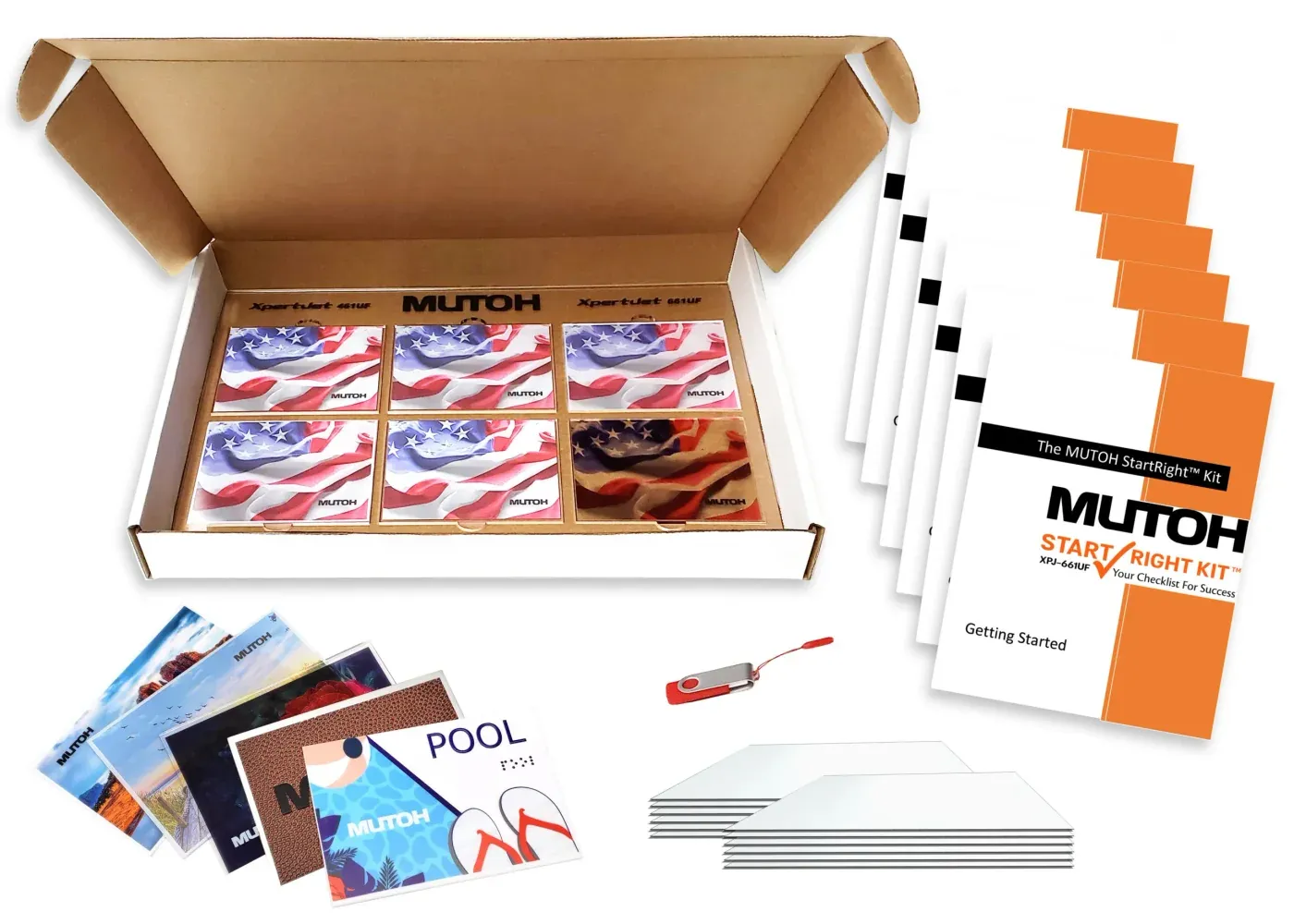

Enhance your printing capabilities with the award-winning RIP Software and a complimentary one-year subscription to SAi Flexi DESIGN MUTOH Edition. Every unit includes an advanced training tool designed to get users up and running quickly.
Features
- RIP software optimizes printer performance and is bundled with Flexi DESIGN MUTOH Edition, a $1,600.00 value
- 19.02 x 23.3 inch printable area
- UV-LED Local Dimming Technology
- CMYK + White and Varnish
- Print directly on a variety of substrates up to 5.91 inches thick
- Print ADA Compliant Braille
- Automatic Table Height Adjustment
- Included Vacuum table
Specs
| Specification | Detail |
|---|---|
| Printing Systems | On-demand piezo drive system |
| Set Media Size (WxD) | 20.5 in x 24.5 in |
| Set Media Height | 0–5.91 in |
| Set Media Weight | 13.23 lbs. |
| Max Printable Size (WxD) | 19.02 in x 23.39 in |
| Height Adjustment | Automatic |
| Ink Type | UV-LED Ink (UH21 ink / US 11 ink) |
| Ink Set | 4 colors (C, M, Y, K) / 6 colors (C, M, Y, K, White, Varnish) |
| Ink Capacity | 220ml ink cartridge (CMYK, W, V), 800ml ink bag (CMYK, V), 500ml bag (W) *Bulk ink requires an additional adaptor. |
| No. of Ink Slots | 6 |
| Stand | Included | Working Height: 48.11 in |
| Print Resolution | 1440 / 1080 / 720 dpi (Total 6 modes) |
| Interface | Ethernet (10BASE-T / 100 BASE-TX) |
| Power Requirements | AC 100-120V ± 10%, 50/60Hz ± 1Hz |
| Operation Noise | Standby: 49dB or less | Printing with vacuum table: 69dB or less |
| Printable Environment | Temperature: 68-89.6°F | Humidity: 40-60%RH (non-condensing) |
| Power Consumption | Sleep Mode: 20W or less | Ready to Print: 40W or less | Operation: 300W or less |
| Dimensions (WxDxH) | Weight | 46.77 in x 64.06 in x 23.78 in (cover closed) | weight: 286.60 lbs. / 46.77 in x 64.06 in x 47.01 in (front cover opened) |
| Printer Driver | Bundled |
| RIP Software | MUTOH VerteLith™ |
| Rotary Unit | Optional |
Applications
The XPJ-661UF is well suited to promotional products, awards, phone cases, drinkware, personalized gifts, lenticular prints, specialty items, and direct-to-object printing across a wide range of substrates.
-
Rigid Substrates
-
Directional Signage
-
Promotional Items
-
Packaging
-
Phone Cases
-
Awards
-
Lenticular 2.0
