The all-in-one DTF solution built for reliable production and brilliant results.

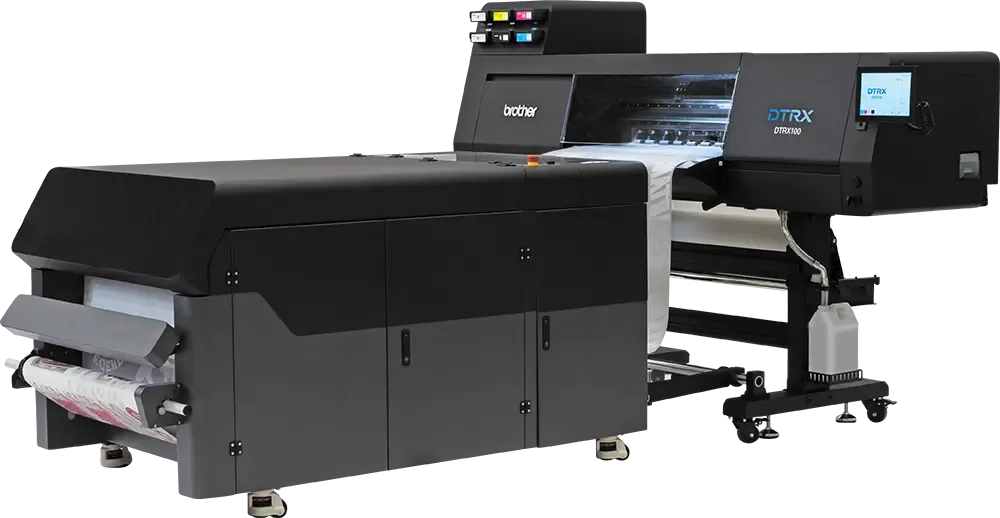

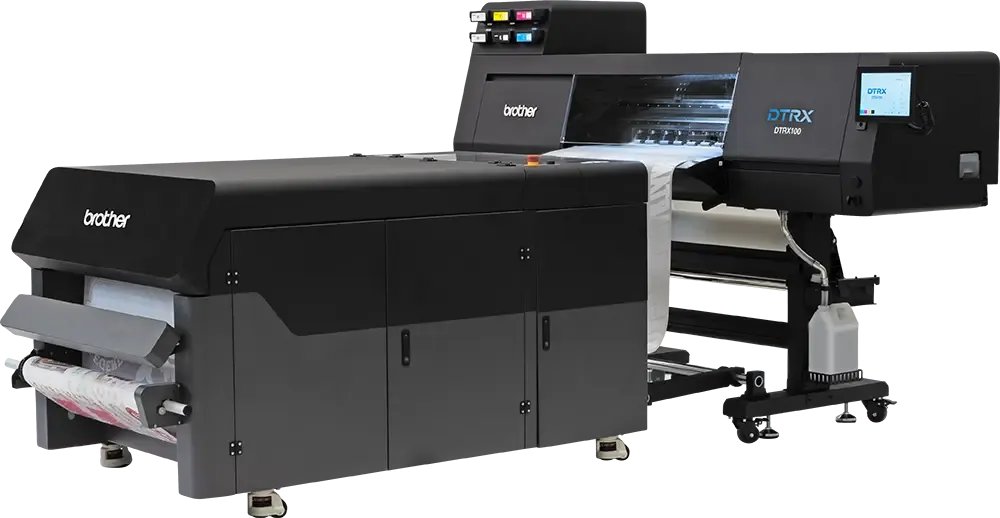

Experience the confidence of printing at peak performance with this fully integrated DTF system from Brother. The 32" roll to roll printer and adhesive curing unit are designed to work together delivering unmatched print quality and high volume performance.
Download DTRX BrochureSpecifications
Printing Method
Direct inkjet film printer
Printing Applications
Roll to roll

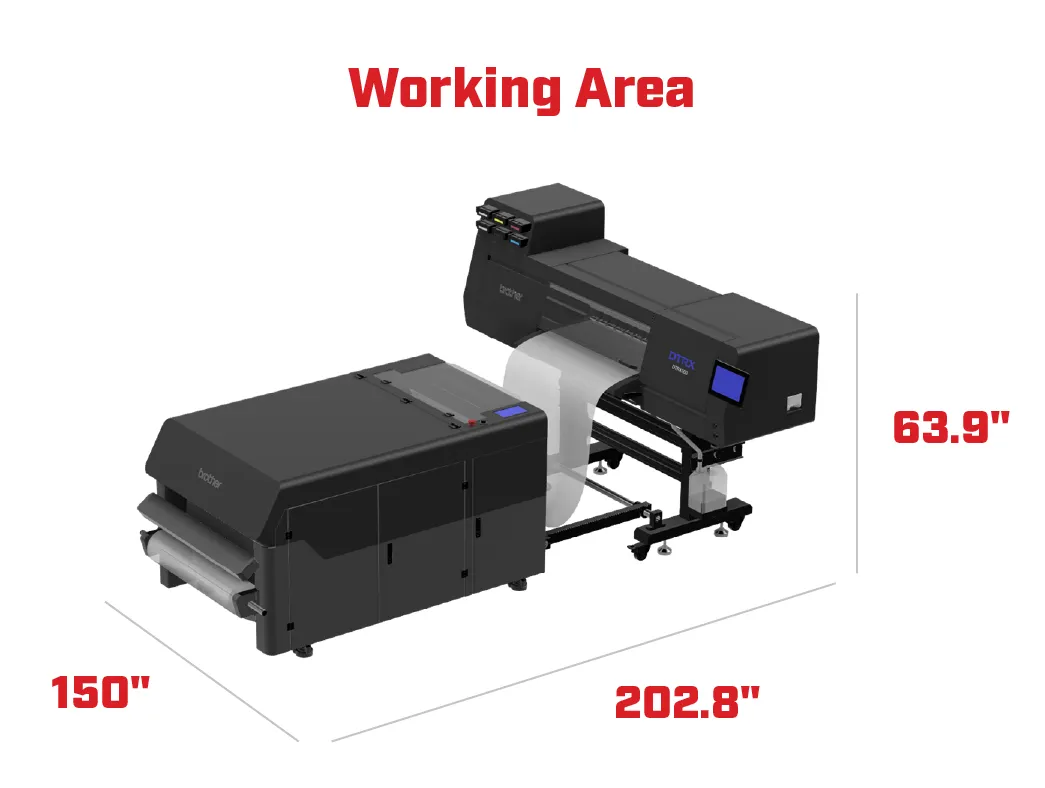

Machine Size
Printer Only: 90.9"(W) x 35.0"(D) x 63.4"(H) (2310mm x 890mm x 1610mm)
Dryer: 77.2"(W) x 45.7"(D) x 41.5"(H) (1960mm x 1160mm x 1055mm)
Machine Weight
Printer with stand: 575.9 lbs (261 kg)
Printer only: 478.2 lbs (217 kg)
Dryer only: 881.9 lbs (400 kg)
Ink Type
5-Color Water-Based Pigment Ink (CMYKW)
Ink Packaging
700ml Pouches (CMYK + 2 White)
White Ink Management
Ink circulation in print lines and manifold, wet caps and wiper blades.
Ink Certifications
ECO PASSPORT® by Oeko-Tex
GOTS by ECOCERT GREENLIFE
CPSIA Compliant
Ink-Head Type

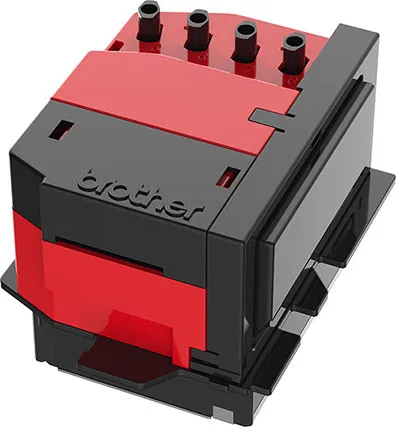

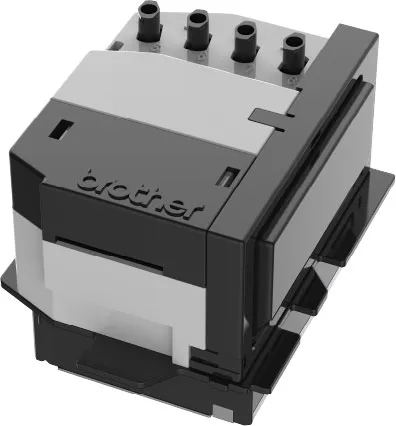

Brother Manufactured Industrial Piezo Print Heads
Number of Print Heads and Ink Channels
4 Print Heads (CMYK x2 / White x2)
Print Resolution
Maximum: 600x1200 dpi
Maximum Print Width
31.5" (800mm)
Environment
Control Panel
10 inch Touchscreen
Connectivity
Ethernet 1000BASE-T
Power Supply
Printer - 200-240V/7.5A, Single Phase
Dryer - 200-240V/20A, Single Phase
Roll Specifications
Maximum Width
31.9" (810mm)
Minimum Width
23.6" (600mm)
Paper Core
2" or 3" core
Material
PET (DTF)
Maximum Thickness
0.5mm
Roll Diameter
Max 5.9" (150mm)
Weight
Max 28.7 lbs (13 kg)
Software
OS
PC Windows 11 (64-bit)
Driver operating conditions
3GHz or faster CPU
Display resolution
1080p (1920 x 1080) or greater
Specifications, features, and availability are subject to change without notice. While we strive for accuracy, product details may vary. Actual product performance may differ based on usage and conditions.
