The hybrid DTG / DTF printer designed with high volume printing in mind.
Keep your business looking forward with Brother. Our GTXpro B hybrid printer is production ready and operator friendly, with a smartly engineered bulk ink system that helps you fill larger orders and grow your business.
Download GTXpro B BrochureSpecifications
Printing Method
Direct inkjet garment printer
Printing Applications
Direct to garment and direct to film printing

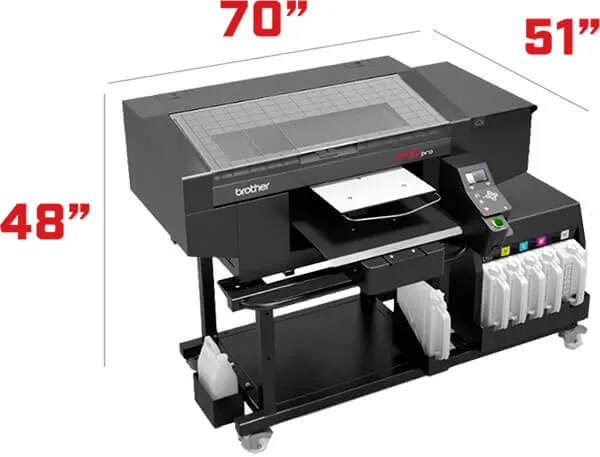

Machine Size
70”(W) x 51”(D) x 48”(H) (1780mm x 1300mm x 1210mm) With recommended stand
![Machine dimensions](/_astro/machinesize-gtxpro-b.4a6_q7-y_Z9Ly4s.webp)
Machine Weight
Approx. 364 lbs. (165kg) including platen (not including stand)
Platen Sizes
![Adult platen](/_astro/specs-platen-adult.CDoNq70V_Z1SPRaS.webp)
Adult Platen
14“ x 16“ / 35,6cm x 40,6cm
![Youth platen](/_astro/specs-platen-youth.CADtS8gf_ZnoFua.webp)
Youth Platen
10“ x 12“ / 25,4cm x 30,5cm
![Baby platen](/_astro/specs-platen-baby.CiaFlnEQ_f56Hd.webp)
Baby Platen
7“ x 8“ / 17,8cm x 20,3cm
Maximum Print Size is 16” x 21” / 40,6cm x 53,3cm
View all platen sizesIncluded Platen Size
14” x 16” (35,6cm x 40,6cm)
Ink Delivery
Advanced Ink System
![Advanced Ink System logo](/_astro/specs-ink-delivery_advanced-ink.BwcvHLfi_Z2t4zpk.webp)
Ink Type
Water-based pigment ink
![Innobella ink](/_astro/specs-logo-innobella.LN_0UsGz_zyTLF.webp)
![CMYK + White ink](/_astro/specs-logo-cmykw.9I_O-c67_ZVmbqq.webp)

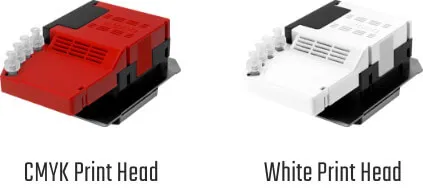

Number of Print Heads
2 Print heads: 1 for White Inks, 1 for CMYK Inks
![CMYK + White ink](/_astro/specs-number-print-heads.CAB0HA0w_1H37HY.webp)
Print Resolution
1200 dpi x 1200 dpi
Print Mode
Single or double for CMYK. Underbase and highlight for white.

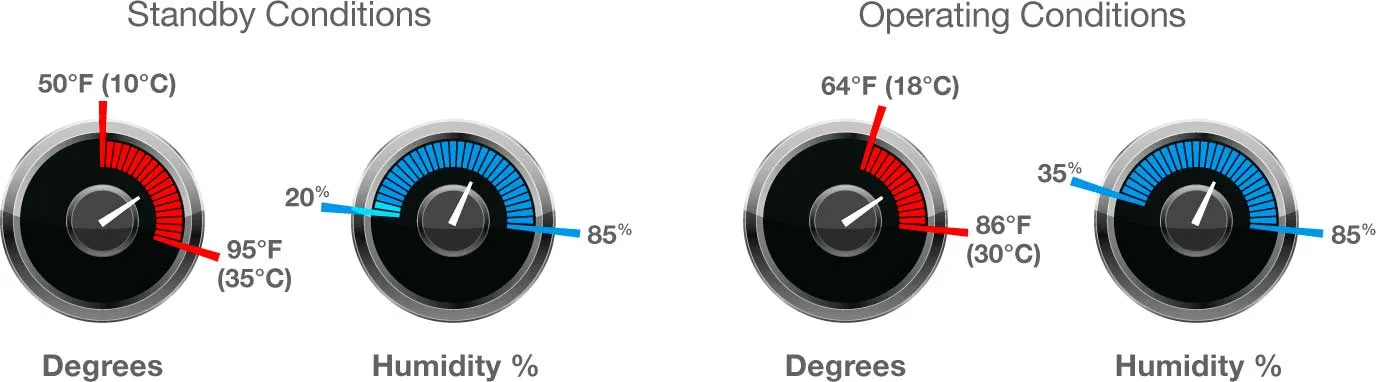

Environment
![CMYK + White ink](/_astro/specs-environment.CMOL-qIJ_ZITDbJ.webp)
Data output
Printer driver (USB, File output, LAN)
Power supply
AC 100V-240V, 50/60Hz ± 1Hz
Power consumption
0.8A(average) (Reference: 0.4A – during circulation)

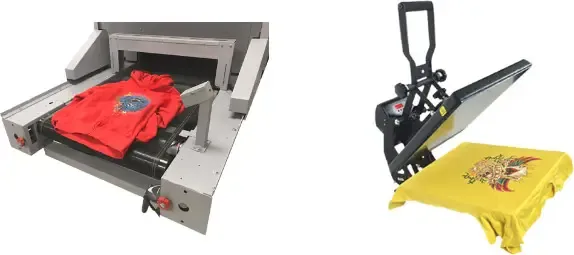

Ink cure
Heat press machine can be used at 356°F (180°C) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 320° (160°) for three and a half minutes. Time and temperature may vary depending on which manufacturer's dryer is used.
![Ink cure process](/_astro/specs-cure-gtxpro-b.Da5QcI53_kpPKh.webp)
Pre-treatment
Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer's instructions. Pre-treatment is necessary for white ink.
Software
OS
macOS® Big Sur to macOS® Ventura, Windows 8.1 (64-bit), Windows 10 (64-bit) and Windows 11 (64-bit)
![OS compatibility icons](/_astro/specs-os.DO6lECbY_Z1guven.webp)
Interface
USB2.0, LAN(10BASE-T, 100BASE-TX, 1000BASE-T), USB Flash Memory(Under 32GB, FAT32 format)
Driver operating conditions
2GHz CPU (minimum recommendation), 4GB RAM
Display resolution
XGA(1024x768) (minimum recommendation)
Recommended applications
CorelDRAW® 2018/2019 (Windows), Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC
![GTX Graphics Lab logo](/_astro/specs-logo-gtx-graphics-lab.z2la3mla_Z24lOEt.webp)
