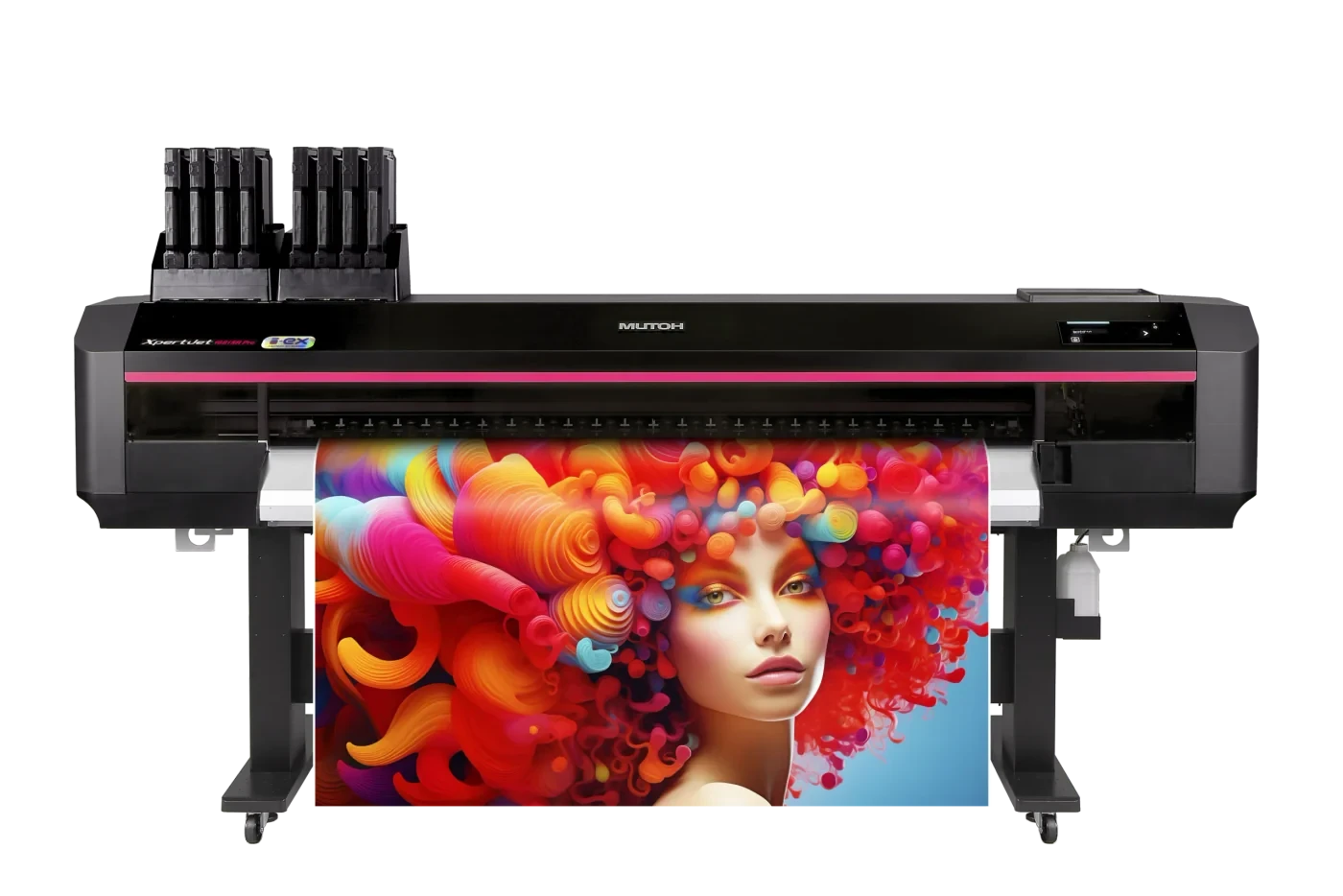

XpertJet 1681SR Pro
XpertJet 1681SR Pro
64” Eco-Solvent Printer

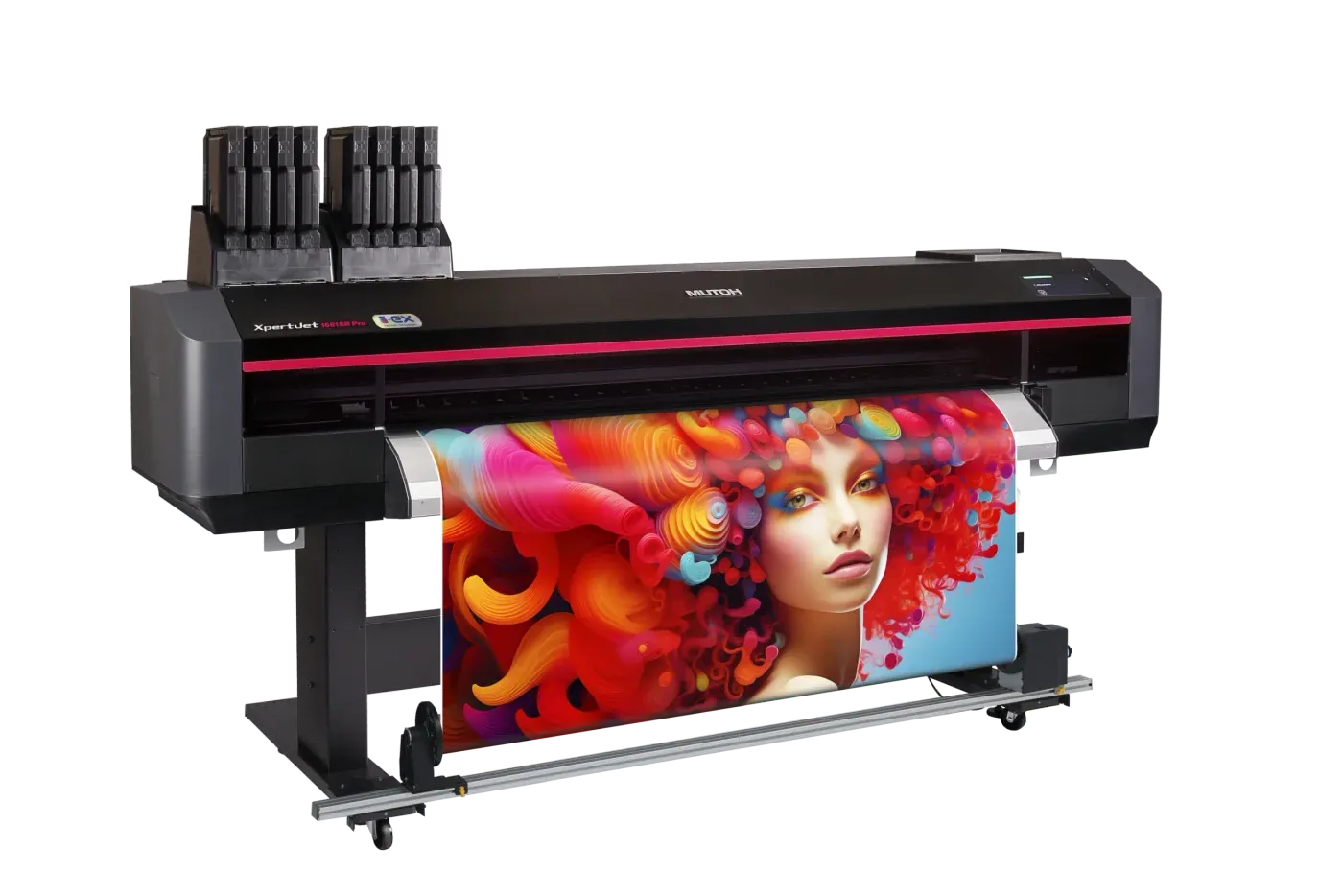

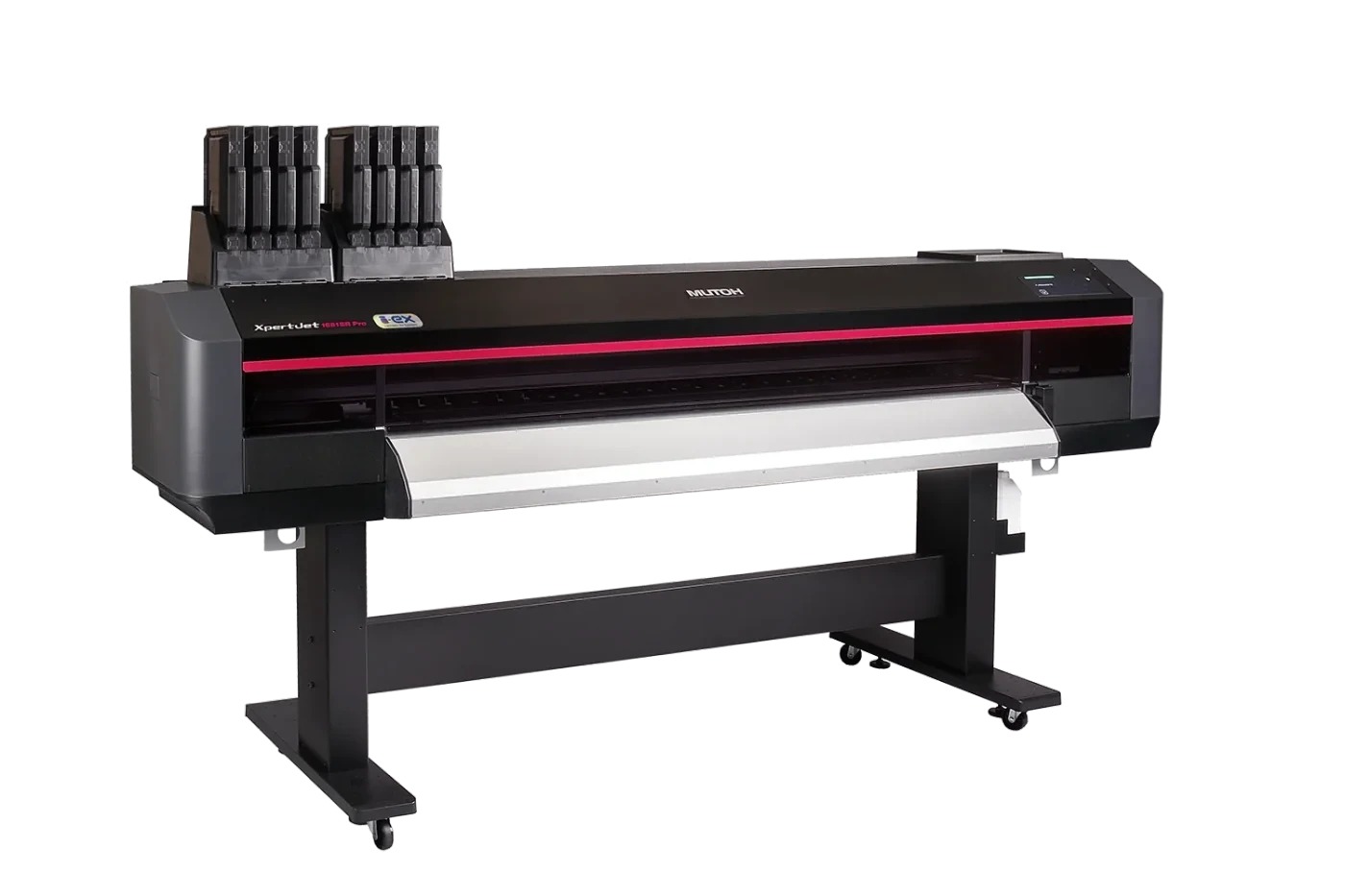

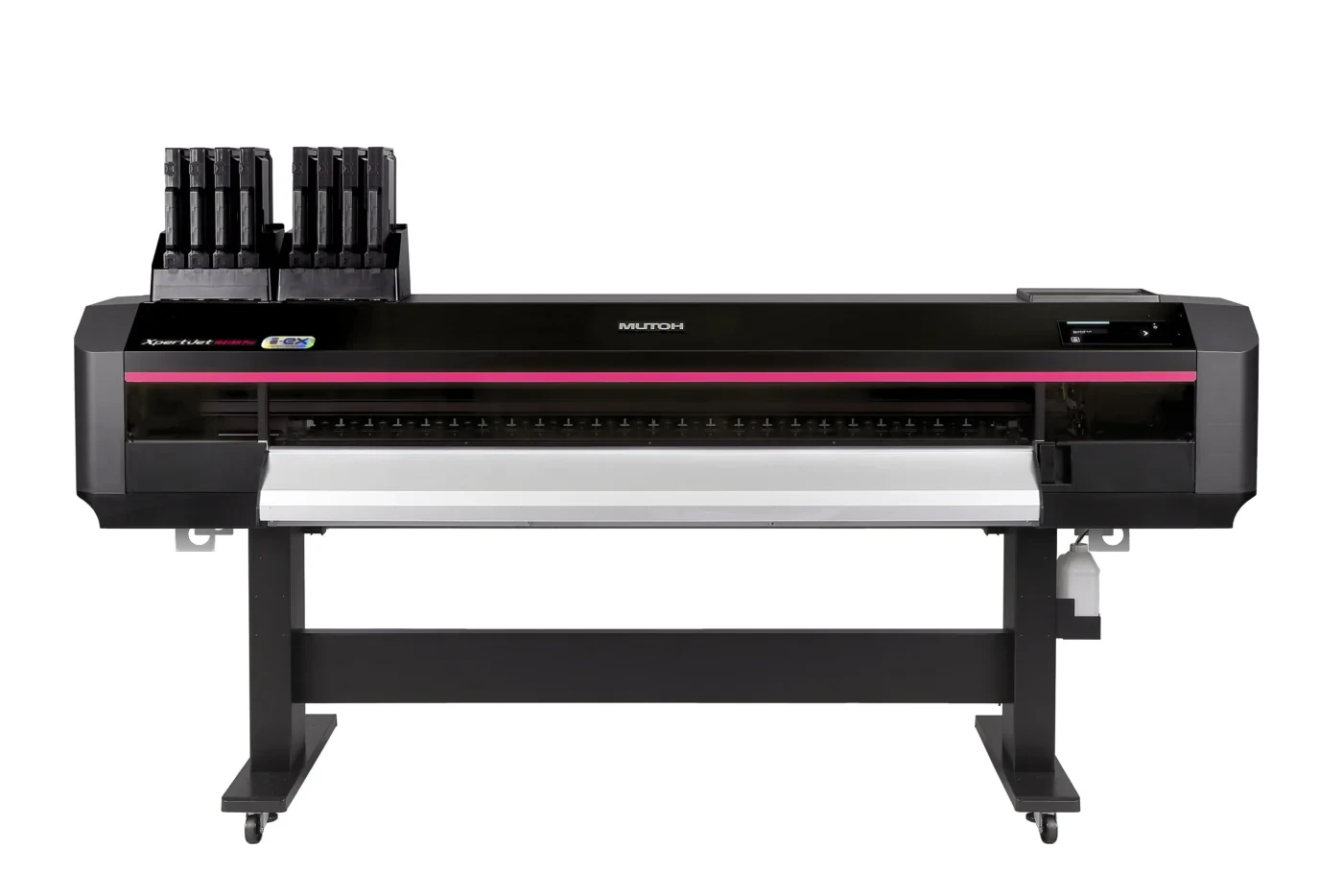

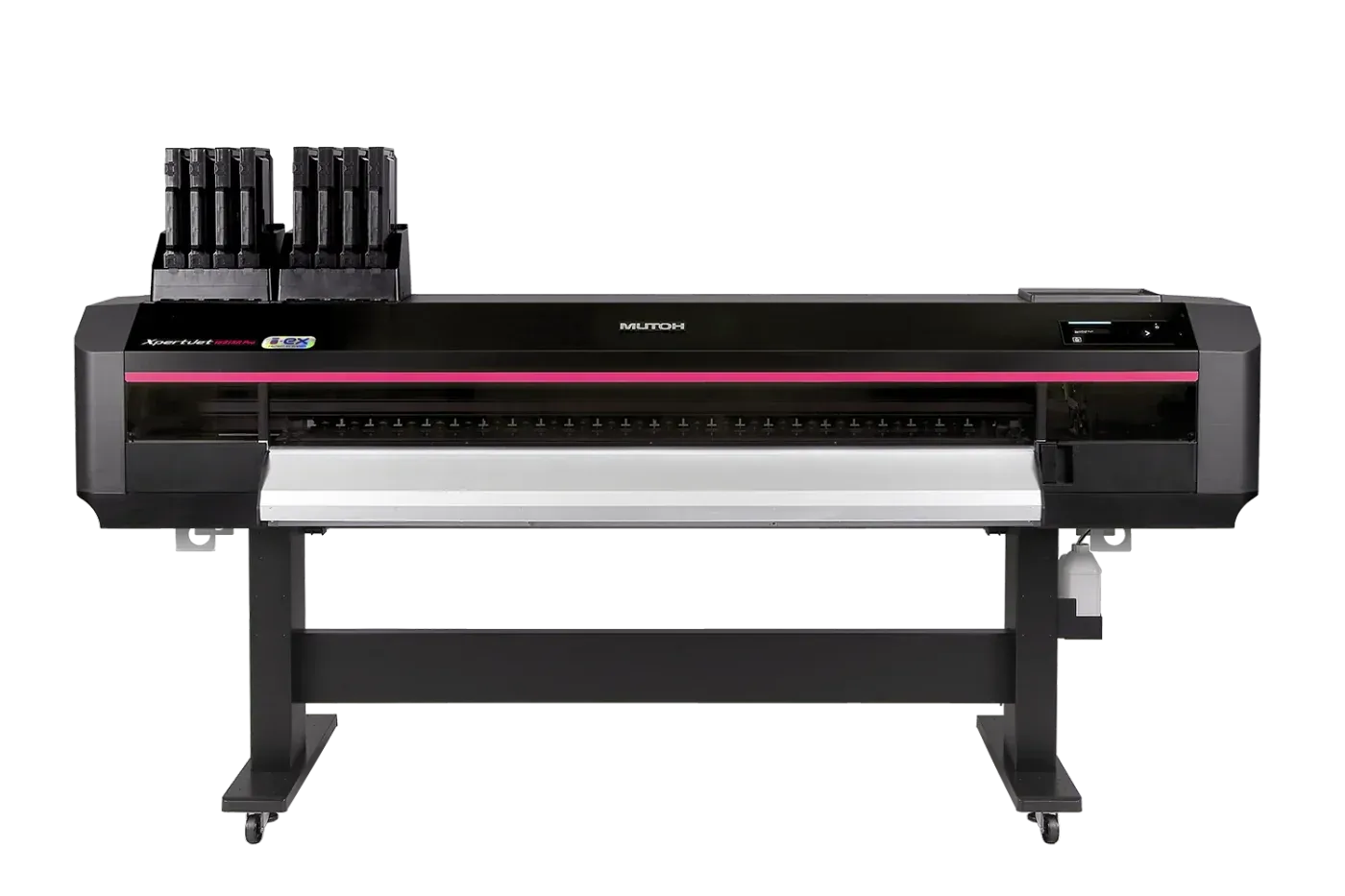

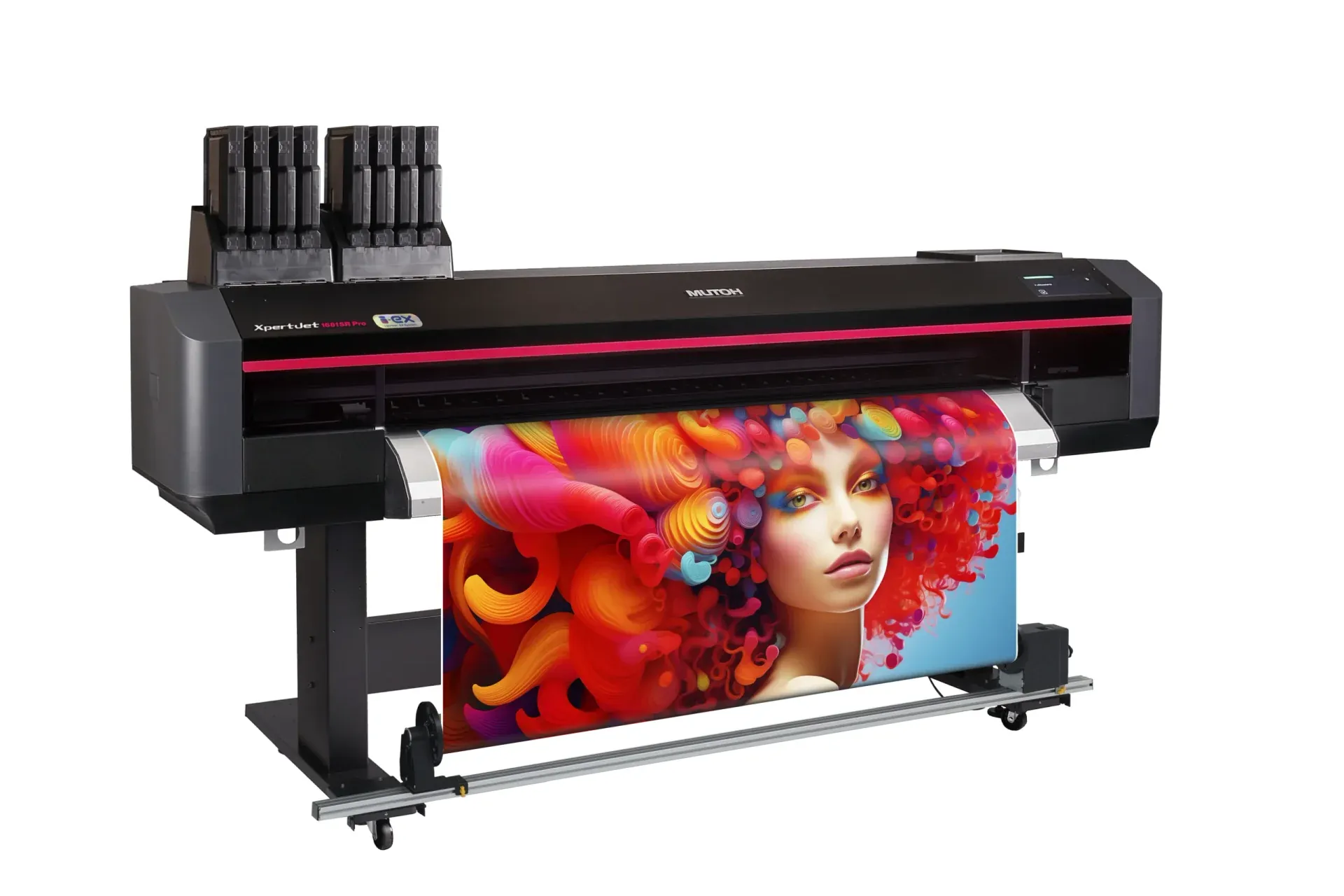

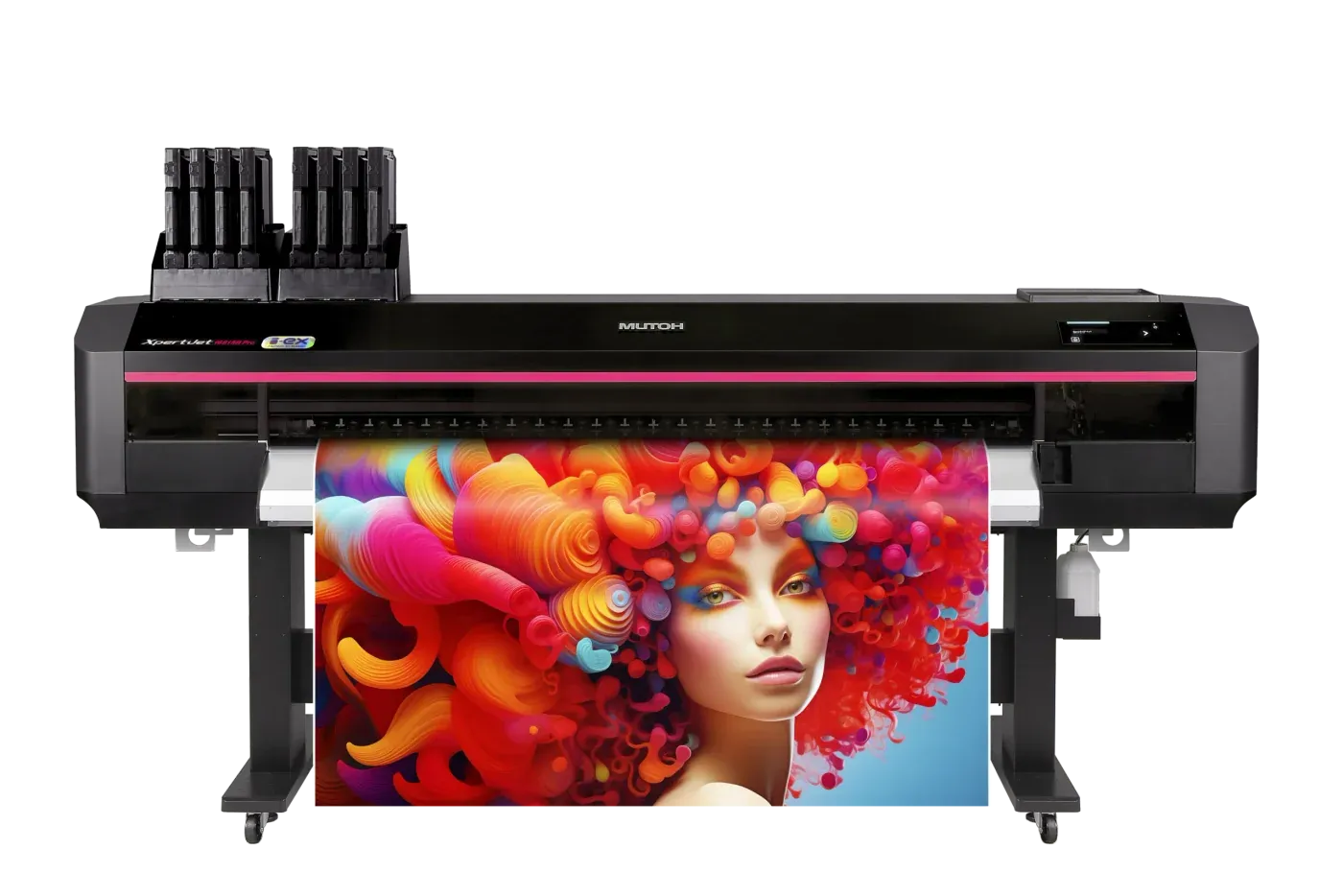

The MUTOH XpertJet 1681SR Pro is a 64″ 8-color eco-solvent printer built for sign, graphics, and vehicle wrap professionals. With smart take-up automation, fast drying, and made-in-Japan engineering, it's built to keep busy shops moving.
Fill out the form below to request information about the XpertJet 1681SR Pro.
Fields marked with an asterisk(*) are required.
About the XpertJet 1681SR Pro
Product Details
The XPJ-1681SR Pro's AccuFine HD Pro printhead helps deliver accurate dot placement and fast production, backed by an upgraded front dryer and a standard smart take-up unit for uninterrupted long runs.
Materials & Software
Built for versatility across vehicle wraps, signage, and graphics, the XPJ-1681SR Pro handles roll media up to 63.97in wide and 1.0mm thick, giving shops the flexibility to take on a broad range of substrates and jobs. Includes RIP Software and a one-year SAi Flexi DESIGN subscription — a combined $1,600 value.
Features
- AccuFine HD Pro printhead aids nozzle density for sharp detail
- Updated front dryer

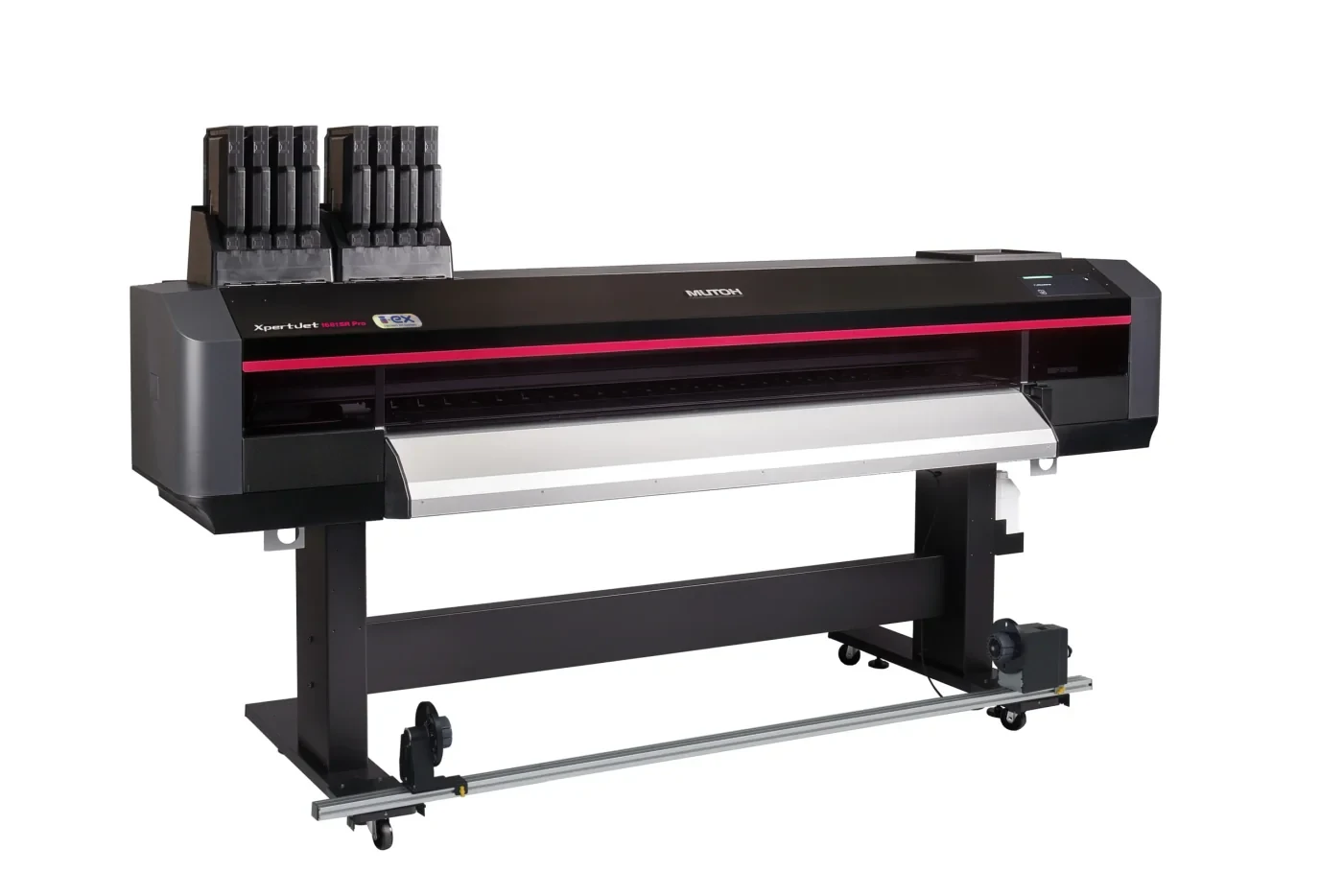

- Smart take-up unit auto-starts/stops with printing, helping extend motor life and enable unattended operation
- Reduced banding and helps improve solid fills for consistent image quality
- Auto-calibrates bi-directional alignment for consistent results across operators
- Automatically adjusts media feed for accurate advancement
- Keeps printing on active nozzles if clogging occurs
- Uses barcodes on media to track amount remaining
- Four-stage head height adjustment for varied media thicknesses
- Multi-stage pressure roller system helps maintain tension and print accuracy
Specs
| Specification | Detail |
|---|---|
| Print Method | On-demand piezo drive system |
| Printhead Height | Low1: 1.5mm / Low2: 2.0mm / Middle: 2.5mm / High: 4.0mm |
| Printhead Number | 1 (MUTOH AccuFine HD Pro) |
| Roll Media Width | Maximum: 63.97in (Minimum: 19.68in) |
| Max. Media Thickness | 1.0mm or less |
| Roll Diameter | Φ7.87in or less |
| Core Diameter | 2in or 3in cores |
| Max. Roll Weight | 30kg/66lbs or less |
| Take-up Unit | 66lb Smart Take-up included (88/220lb options available) |
| Maximum Printable Width | 63.58in |
| Ink Type | Eco-solvent Ink (MS41) |
| Ink Color | 8 Color - CMYKLcLmLkOr |
| Ink Capacity | 1000ml ink bag (Orange 300ml) |
| Max. Print Resolution | 900x1800dpi |
| Interface | Gigabit-Ethernet (1000BASE-T) - Recommend CAT6+ |
| Power Supply | AC100V-120V±10% (90V-132V) or 200V-240V±10% (180V-264V), Frequency: 50/60 Hz ± 1Hz |
| Printer Operation Environmental Conditions | Temperature 68-89°F, Humidity 40%-60%RH (no condensation) |
| Ideal Quality Environmental Conditions | Temperature 72-86°F, Humidity 40%-60%RH (no condensation) |
| Power Consumption | Operation: 812.0W or less (peak: 2.3kW), Standby: 52.0W or less, Power off: 4.0W or less |
| External Dimensions | W 109.0in x D 35.2in x H 63.4in (with 1,000ml ink case installed) |
| Printer Weight | 381.4lbs (Printer body: 310.8lbs, Stand: 70.5lbs) |
| RIP Software | VerteLith (MUTOH genuine RIP software) |
Applications
The XPJ-1681SR Pro supports a wide range of applications including vehicle wraps, signage, wall and floor graphics, decals, banners, and posters.
-
Vehicle Wraps
-
Stickers & Decals
-
Tradeshows
-
Indoor Signage
-
Outdoor Signage
