XpertJet 1641SR Pro II
XpertJet 1641SR Pro II
64” Eco-Solvent Printer

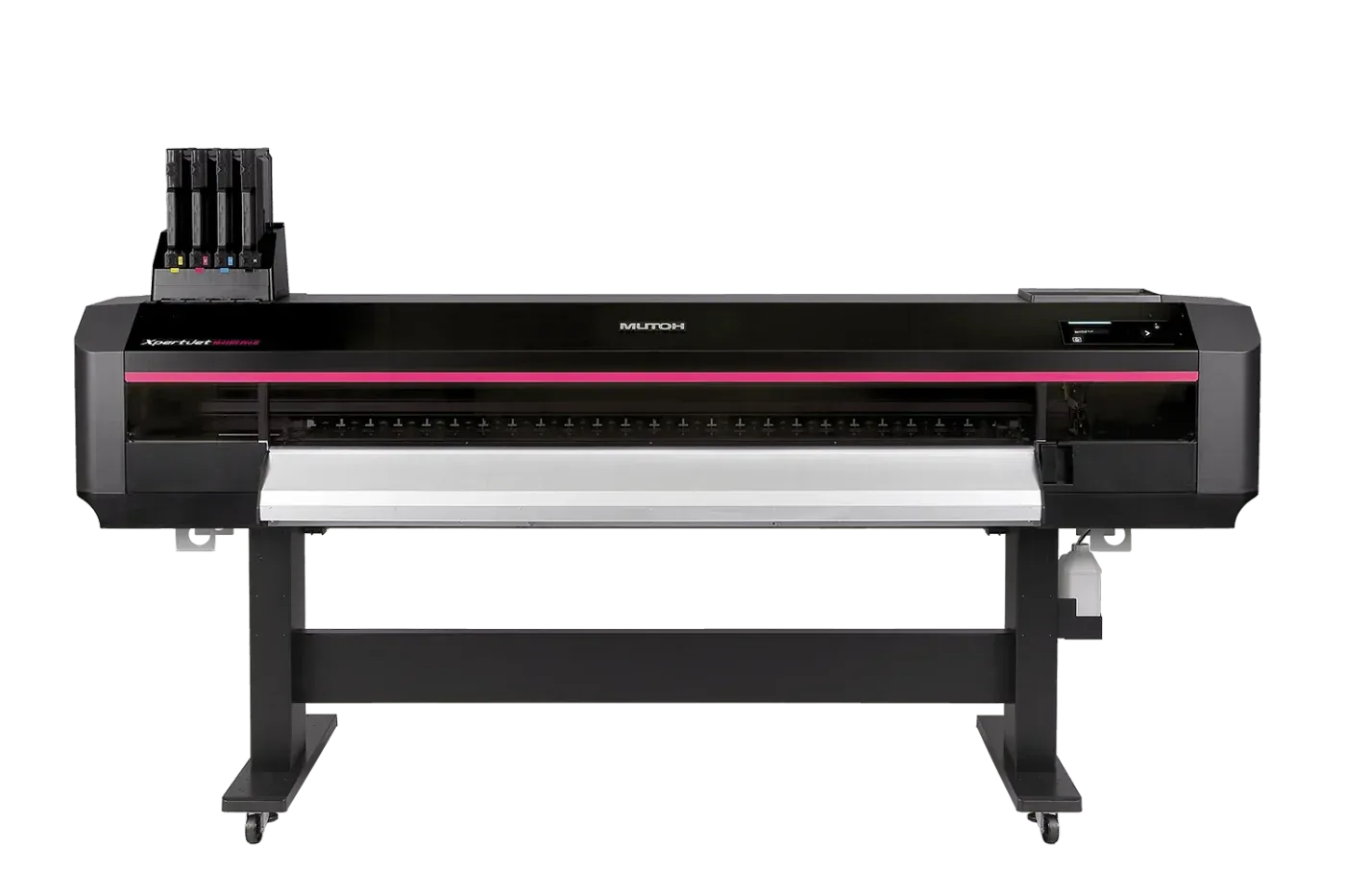

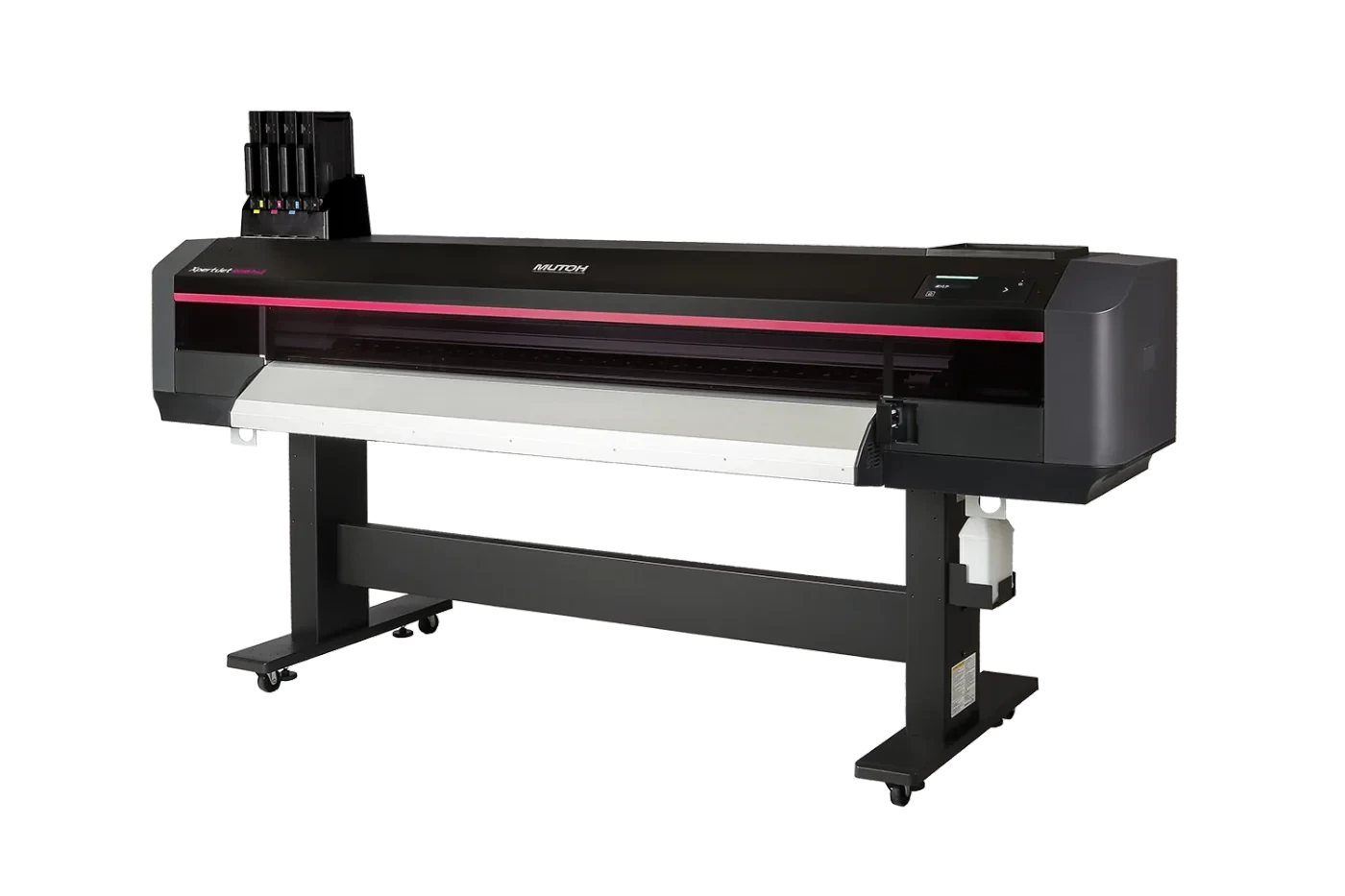

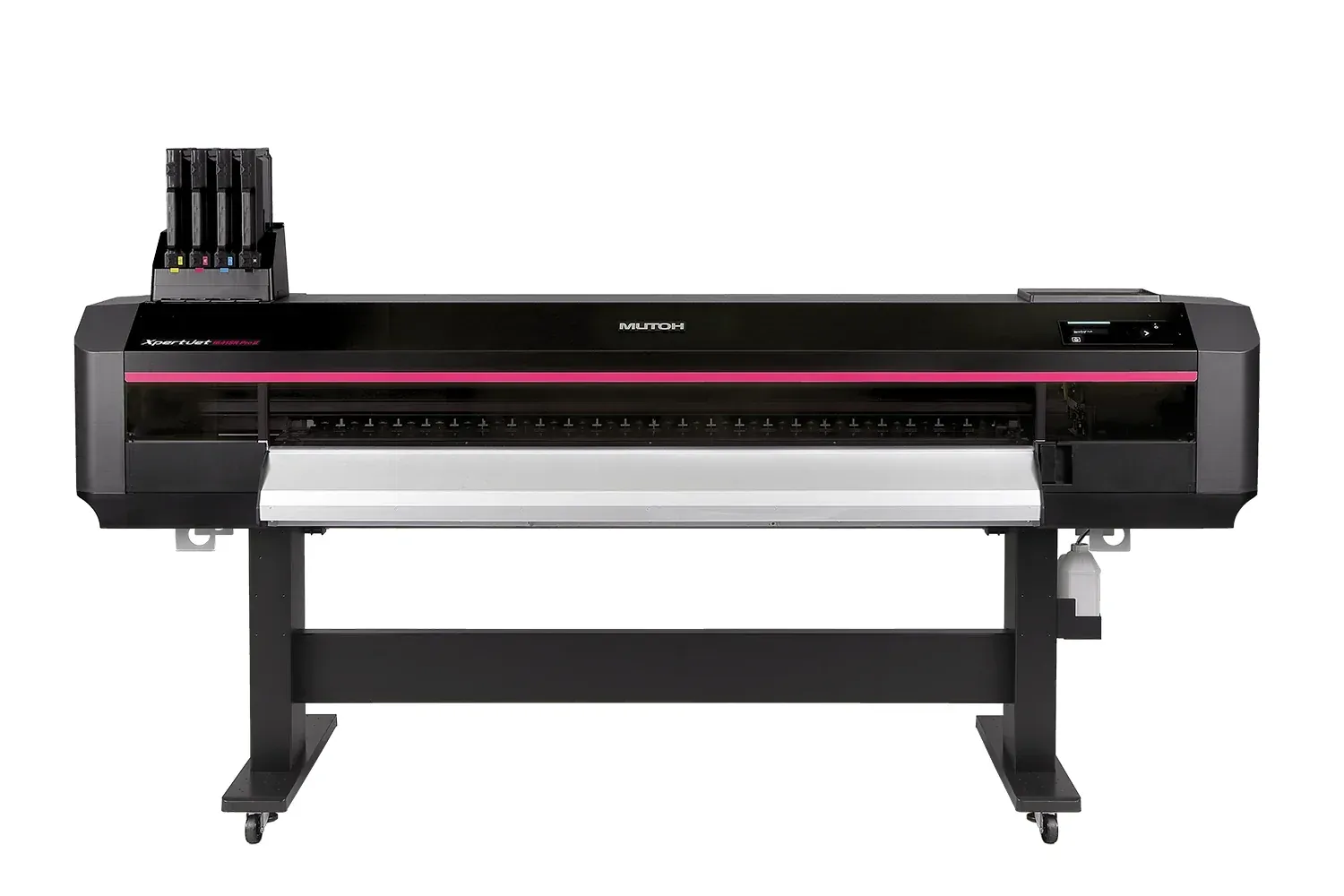

The MUTOH XpertJet 1641SR Pro II is a 64" eco-solvent printer built for vehicle wraps, signage, and banners. Your shop can offer a wide range of applications including vehicle wraps, signage, wall and floor graphics, decals, banners, and posters.
Fill out the form below to request information about the XpertJet 1641SR Pro II.
Fields marked with an asterisk(*) are required.
Product Details
The XPJ-1641SR Pro II is built for sign and graphics professionals who demand high-quality output, reliable performance, and efficient production, combining speed, accuracy, and user-focused controls with the precision of made-in-Japan manufacturing. Its MS41 ink is GREENGUARD Gold certified for use in sensitive environments, offering a wide color gamut, excellent durability, and up to three years of outdoor life.

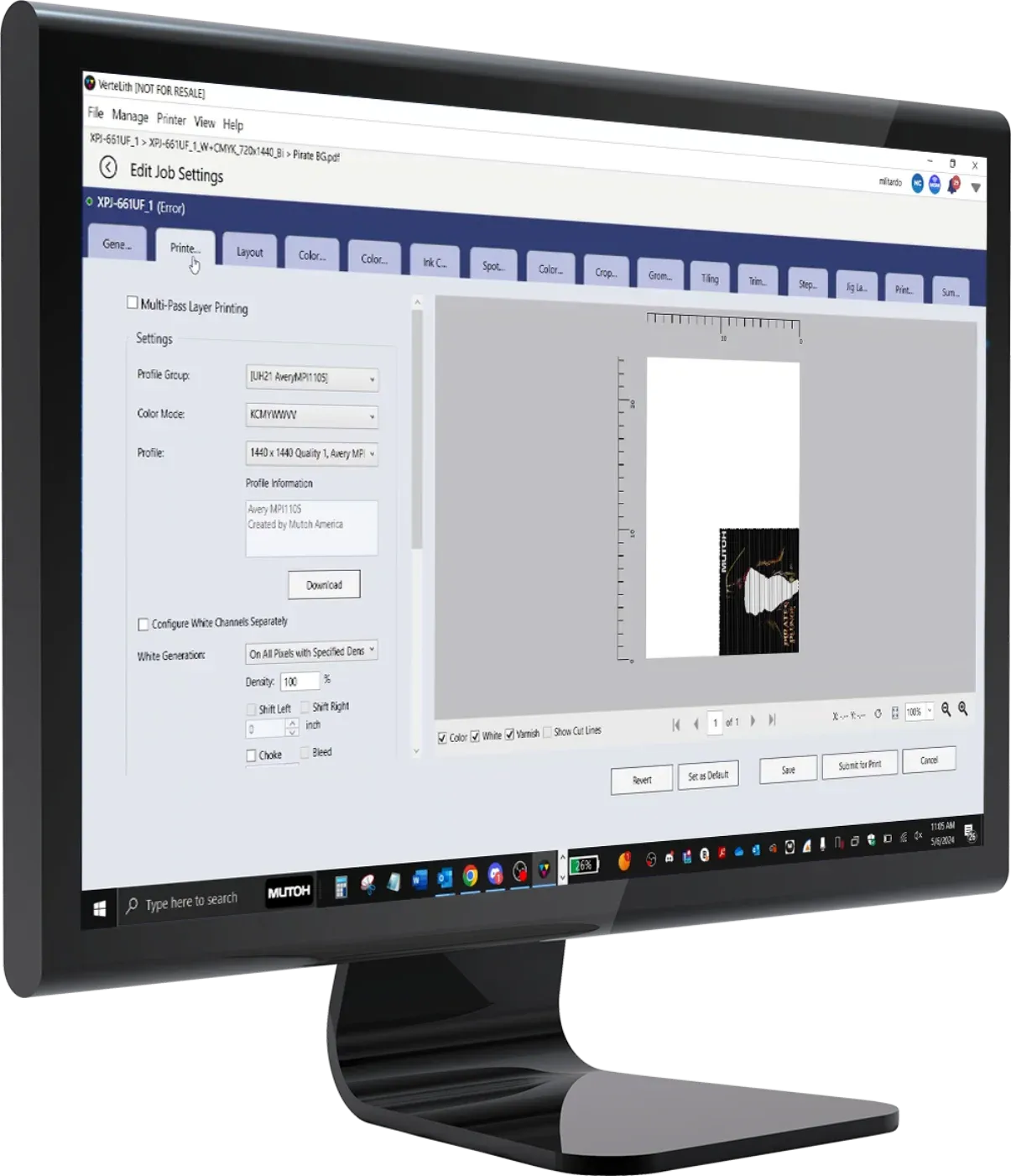

Materials & Software
A four-stage head-height adjustment and multi-stage pressure roller system maintain print quality across media types and thicknesses, making this a versatile addition to your shop. Every printer includes RIP Software plus a complimentary one-year subscription to SAi Flexi DESIGN MUTOH Edition — a combined value of $1,600.
Features
- AccuFine HD Pro printhead aids nozzle density for sharp detail
- Updated front dryer to aid drying performance and throughput
- Smart take-up unit auto-starts/stops with printing, helping extend motor life and enable unattended operation
- Reduced banding and helps improve solid fills for consistent image quality
- Auto-calibrates bi-directional alignment for consistent results across operators
- Automatically adjusts media feed for accurate advancement
- Keeps printing on active nozzles if clogging occurs
- Uses barcodes on media to track amount remaining
- Four-stage head height adjustment and multi-stage pressure roller system help maintain accuracy across a wide range of media types and thicknesses
- RIP software, bundled with Flexi DESIGN MUTOH Edition, auto-populates named Pantone spot colors (coated/uncoated) and applies a CMYK wide color gamut ICC profile
- Half-tone technology for smoother gradients
- Automated layout processing and printing, with soft proof and WYSIWYG RIP preview
- Color management, tab customization, and finishing bleed processing
- Printing log function for job tracking
Specs
| Specification | Detail |
|---|---|
| Print Method | On-demand piezo drive system |
| Printhead Height | Low1: 1.5mm / Low2: 2.0mm / Middle: 2.5mm / High: 4.0mm |
| Printhead Number | 1 (MUTOH AccuFine™ HD Pro) |
| Roll Media Width | Maximum: 63.97in (Minimum: 19.68in) |
| Max. Media Thickness | 1.0mm or less |
| Roll Diameter | Φ7.87in or less |
| Core Diameter | 2in or 3in cores |
| Max. Roll Weight | 30kg/66lbs or less |
| Maximum Printable Width | 63.58in |
| Ink Type | Eco-Solvent Ink (MS41) |
| Ink Color | 4 Color - CMYK |
| Ink Capacity | 1000ml ink bag |
| Print Resolution | 900x1800dpi |
| Interface | Gigabit-Ethernet (1000BASE-T) - Recommend CAT6+ |
| Power Supply | AC100V-120V±10% (90V-132V) or 200V-240V±10% (180V-264V), Frequency: 50/60 Hz ± 1Hz |
| Environmental Conditions – Printer Operation | Temperature 68-89°F, Humidity 40%-60%RH (no condensation) |
| Environmental Conditions – Ideal Quality | Temperature 72-86°F, Humidity 40%-60%RH (no condensation) |
| Power Consumption | Operation: 812.0W or less (peak: 2.3kW), Standby: 52.0W or less, Power off: 4.0W or less |
| External Dimensions | W 109.0in x D 35.2in x H 63.4in (with 1,000ml ink case installed) |
| Printer Weight | 381.4lbs (Printer body: 310.8lbs, Stand: 70.5lbs) |
| RIP Software | VerteLith™ (MUTOH Genuine RIP Software) |
Applications
The XpertJet 1641SR Pro II supports a wide range of applications including vehicle wraps, signage, wall and floor graphics, decals, banners, and posters.
-
Vehicle Wraps
-
Stickers & Decals
-
Tradeshows
-
Outdoor Signage
