XpertJet 1462UF
XpertJet 1462UF
UV-LED Flatbed Printer

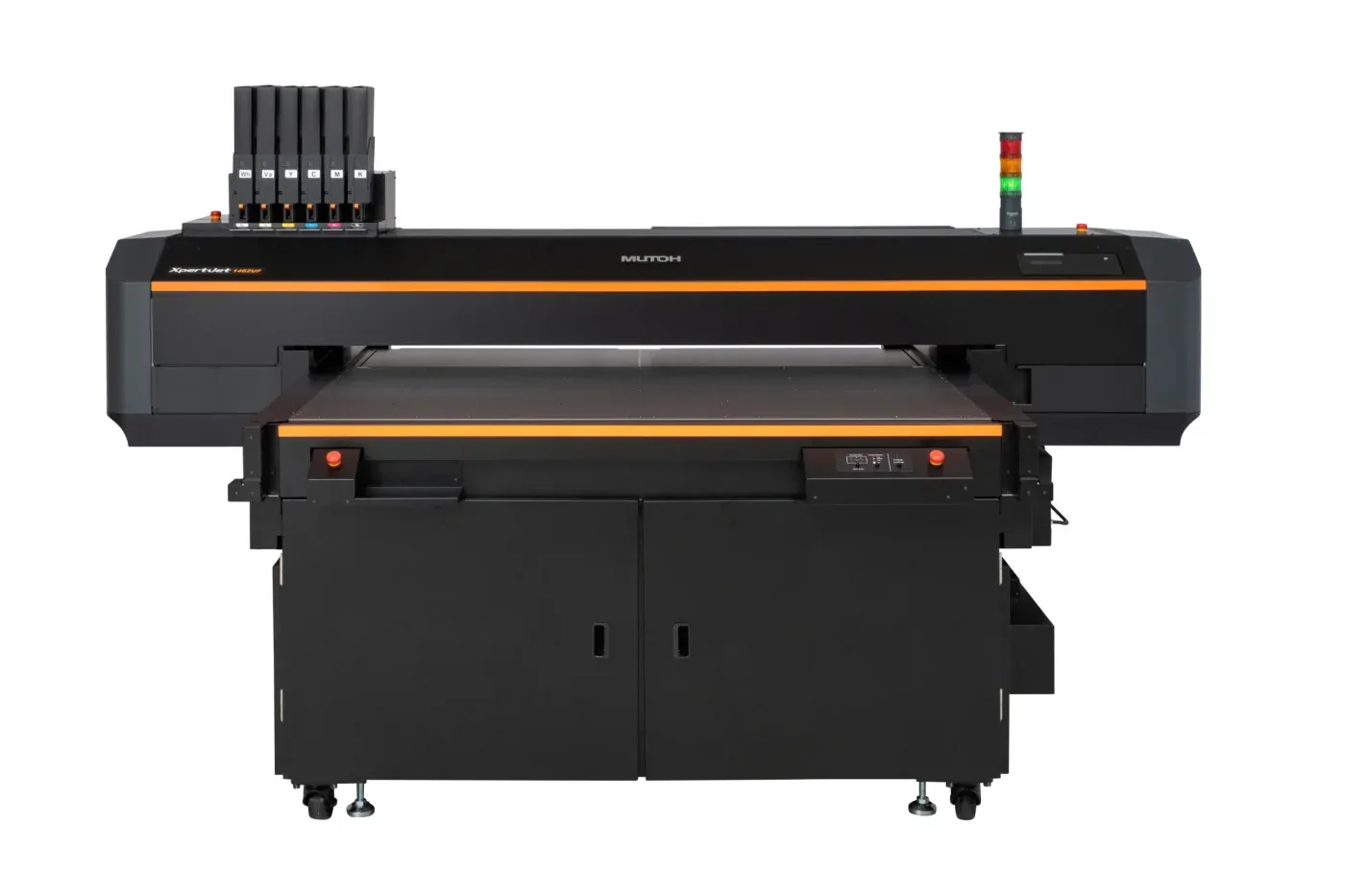

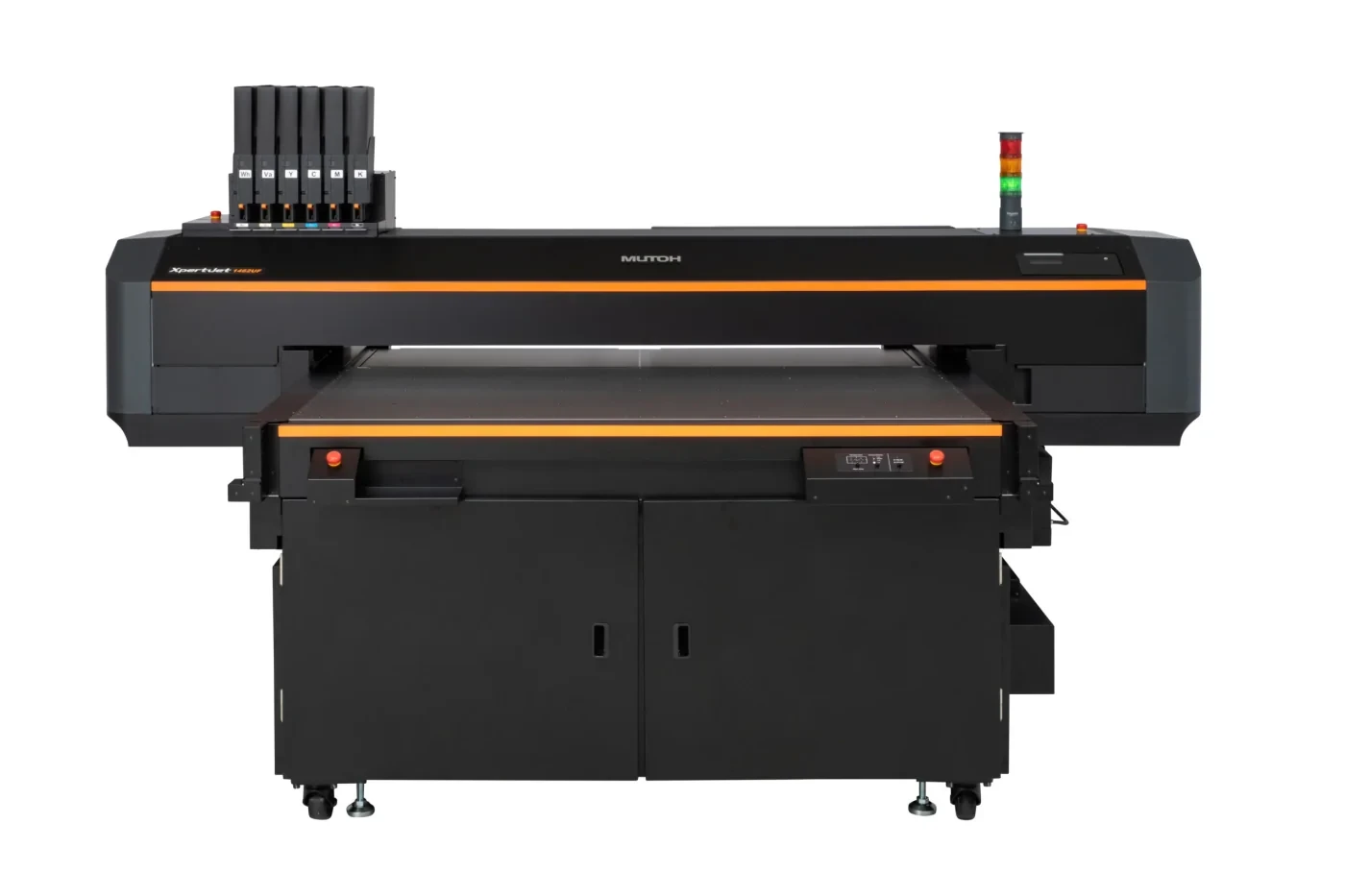

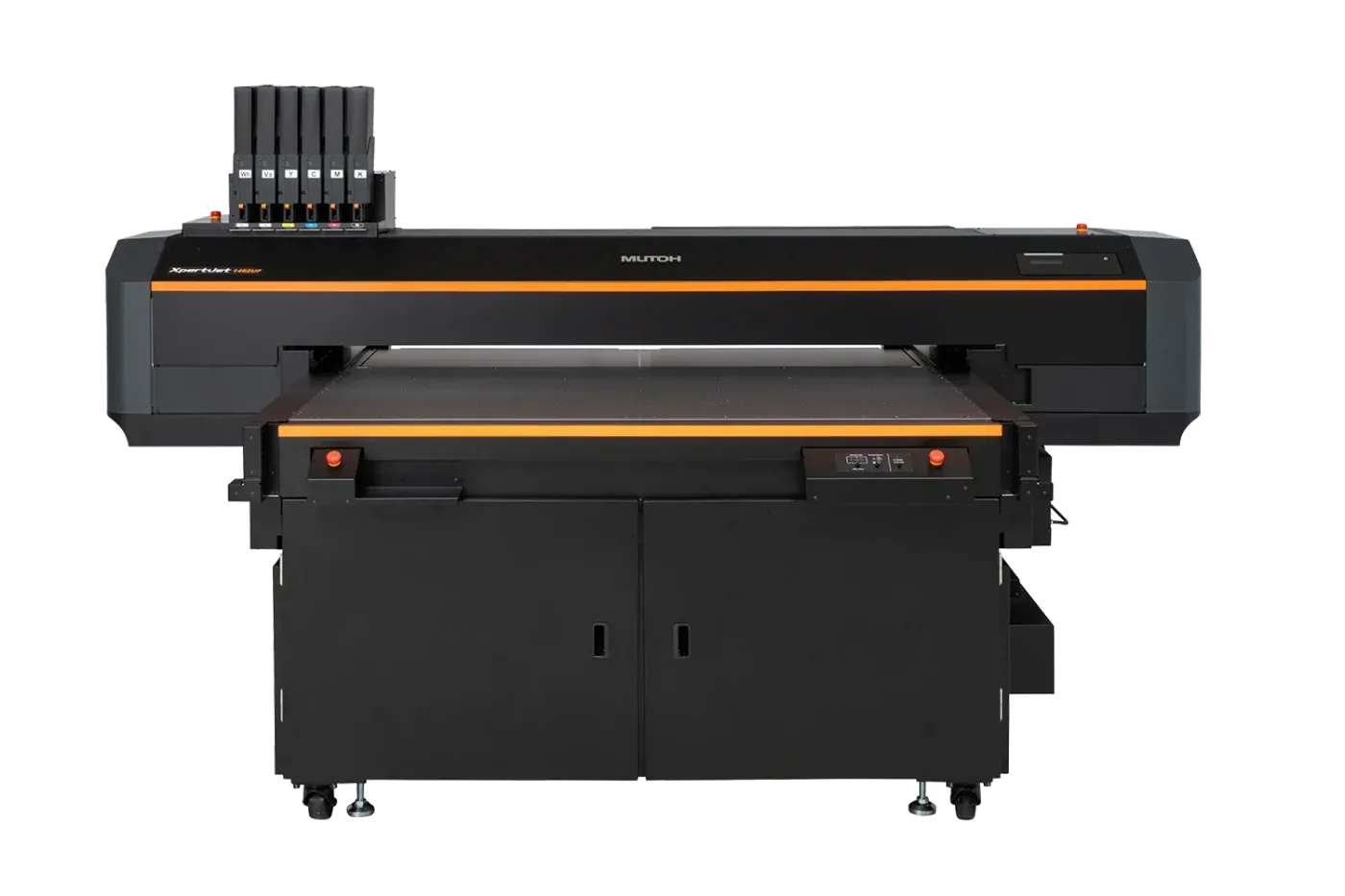

The MUTOH XpertJet 1462UF is a moving-gantry UV-LED flatbed printer with a 55.9" x 27.5" print area, dual staggered printheads for CMYK plus white/varnish, and single-pass gloss finishes up to 1440 x 1440 dpi. Take on more with your shop — from large-format signage to direct-to-object work like ADA braille signage and awards.
Fill out the form below to request information about the XpertJet 1462UF.
Fields marked with an asterisk(*) are required.
About XpertJet 1462UF

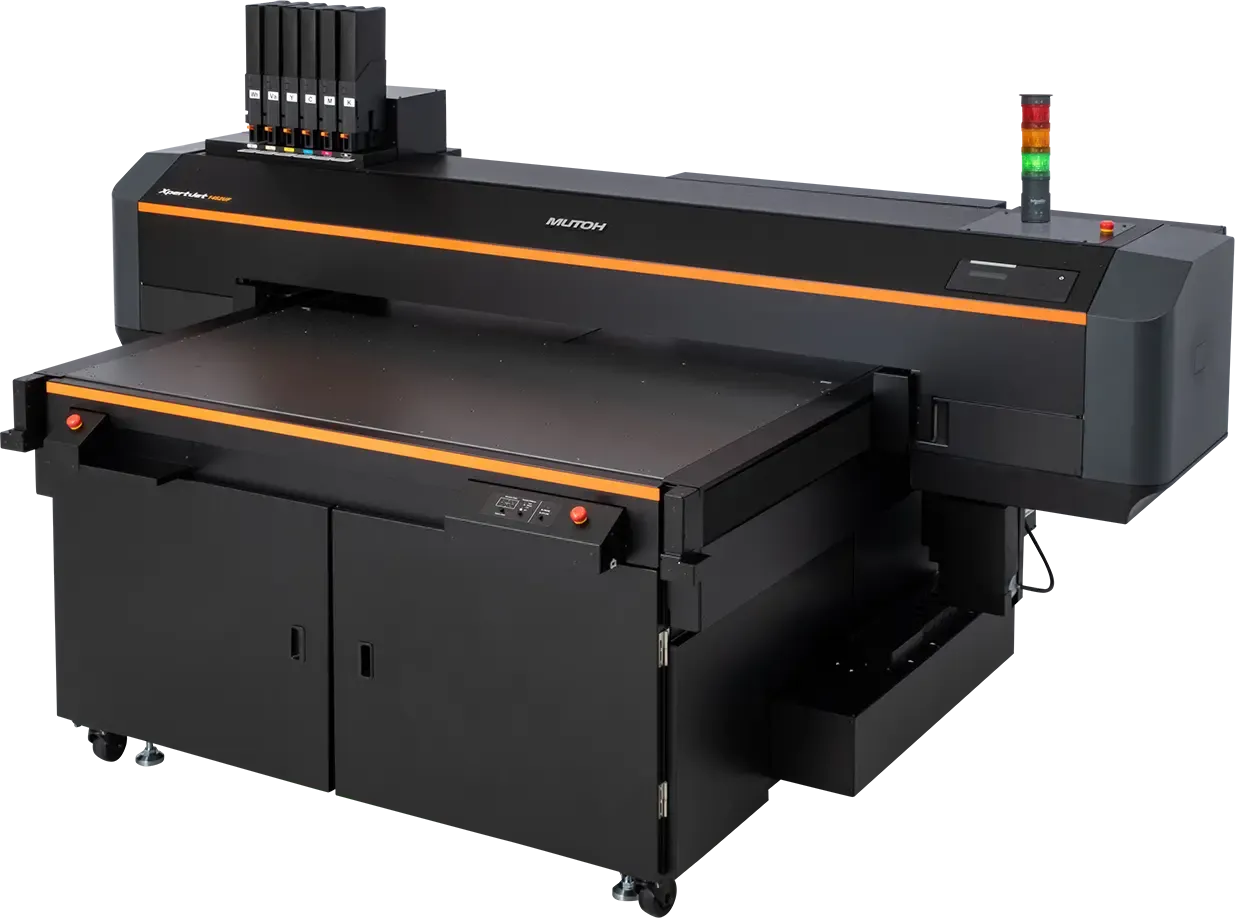

Product Details
With a 55.9" x 27.5" print area, dual staggered printheads (CMYK plus white ink and varnish), and two 4" UV-LED lamps, you can print on objects up to 5.9" thick and produce two-layer prints in fewer passes. Local Dimming Control lets you lay down CMYK and gloss, semi-gloss, or matte varnish finishes in a single pass at up to 1440 x 1440 dpi, plus ADA-compliant braille and 2.5D textured prints, with automatic nozzle detection helping keep long runs moving.
Materials & Software
The XpertJet 1462UF is built for high-volume signage, trade show and retail displays, décor panels, safety and yard signs, and direct-to-object work like awards and promotional items, all backed by vibrant, durable UH21 UV inks that work across acrylic, plastic, metal, wood, paper, and glass. Includes award-winning RIP Software and a complimentary one-year SAi Flexi DESIGN MUTOH Edition subscription, a combined $1,600 value.
Features
- 55" x 27" Printing Area
- Two 4" UV-LED Lamps
- Staggered Dual Print Head Configuration
- Up to 5.9" Thick Material Height
- Laser Height Detection Sensor
- Rigid Chassis and Bed
- Laser Etched Guide-Lines

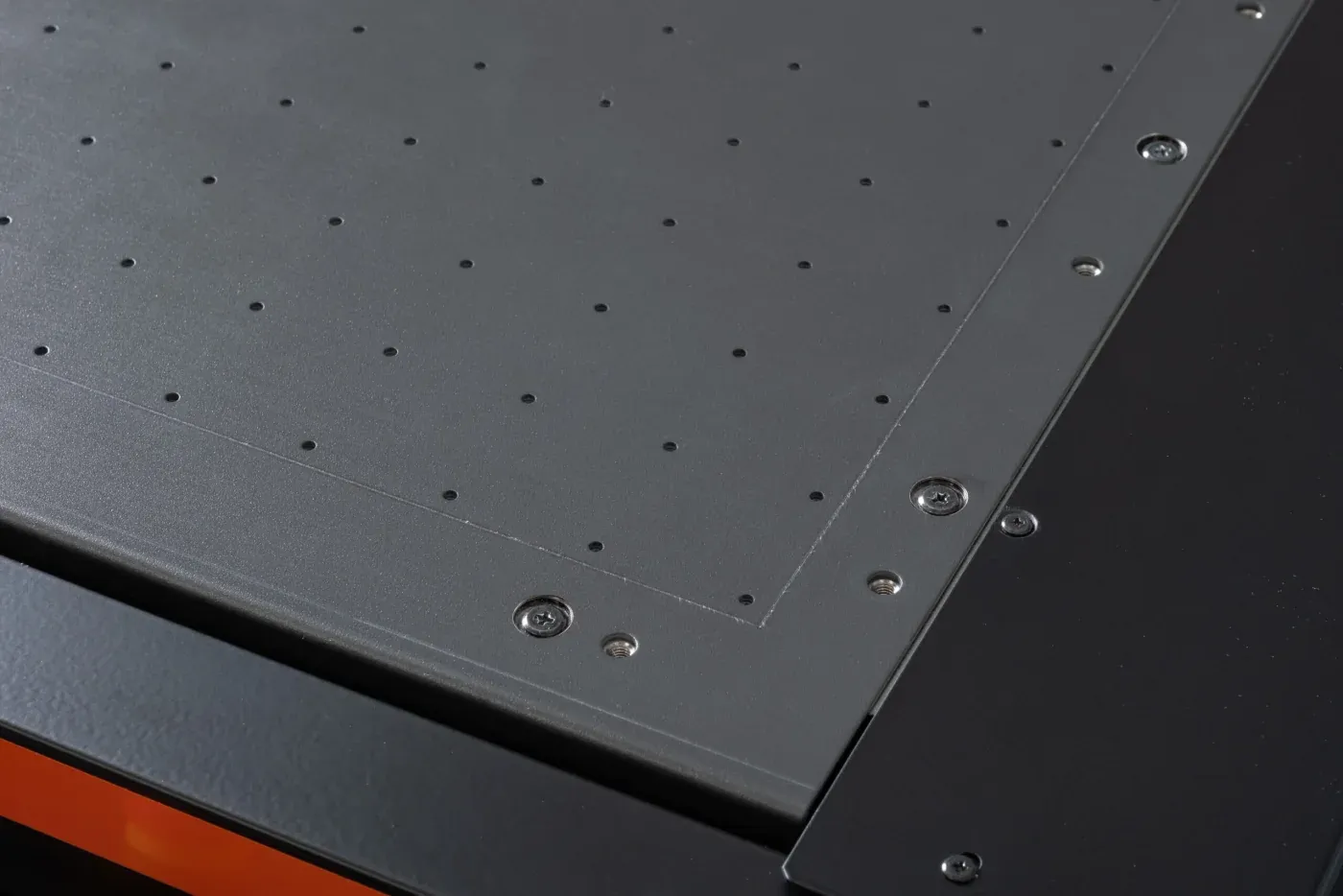

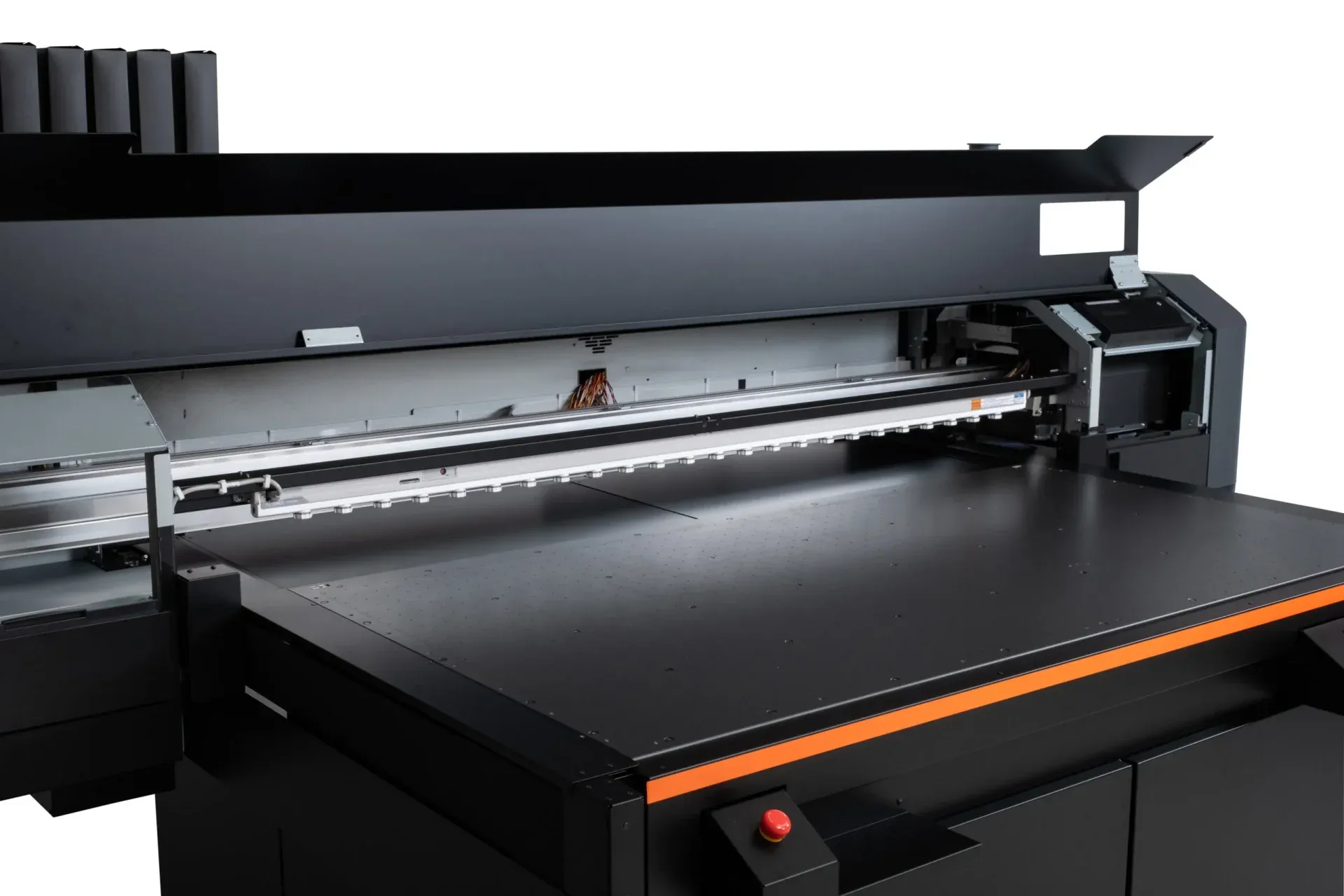

- 4-Zone Vacuum Table Unit
- Pre-Drilled Jig Holes
- Ferromagnetic Table Bed
- Comes Pre-Assembled
- Available with UH-21 Hard/Rigid Ink, 6 Colors CMYK+White+Varnish
- Automatic Nozzle Check Unit with Nozzle Area Select
- RIP software helps optimize printer performance and valued at 1,600
- UV-LED Local Dimming Technology
Specs
| Specification | Detail |
|---|---|
| Printer Model | XPJ-1462UF |
| Printing System | On-demand piezo drive system |
| Print Head – Number | 2 (staggered) |
| Print Head – Ink Type | UH21 UV-LED ink |
| Print Head – Ink Capacity | 800ml bag / 500ml bag (UH21 white ink only) |
| Print Head – Ink Configuration | 6 color (CMYK+W+V) |
| Printable Area | 5.9" |
| Max. Media Thickness | 10.24 psf |
| Max. Media Weight | Automatic |
| Height Adjustment | Up to 1440 x 1440 dpi |
| Print Resolution | GB-Ethernet (1000BASE-T) |
| Weight | Approx. 1100lb |
| RIP Software | VerteLith |
| Optional | Ionizer |
| Dimension | With gantry in the front position: 109" x 63" x 52.7" |
Applications
The XpertJet 1462UF handles a wide range of applications like signage, displays, awards, and promotional items, all backed by vibrant, durable UH21 UV inks.
-
Rigid Substrates
-

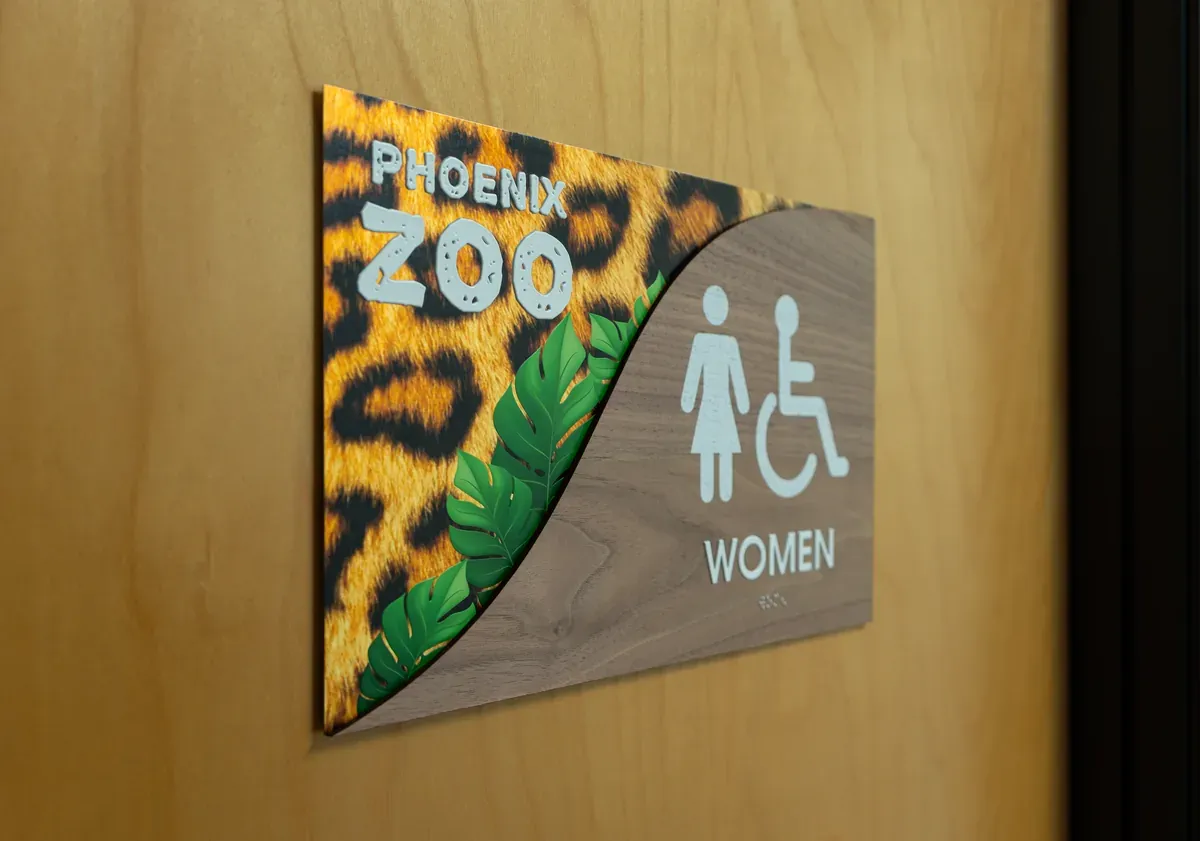

Directional Signage
-
Promotional Items
-

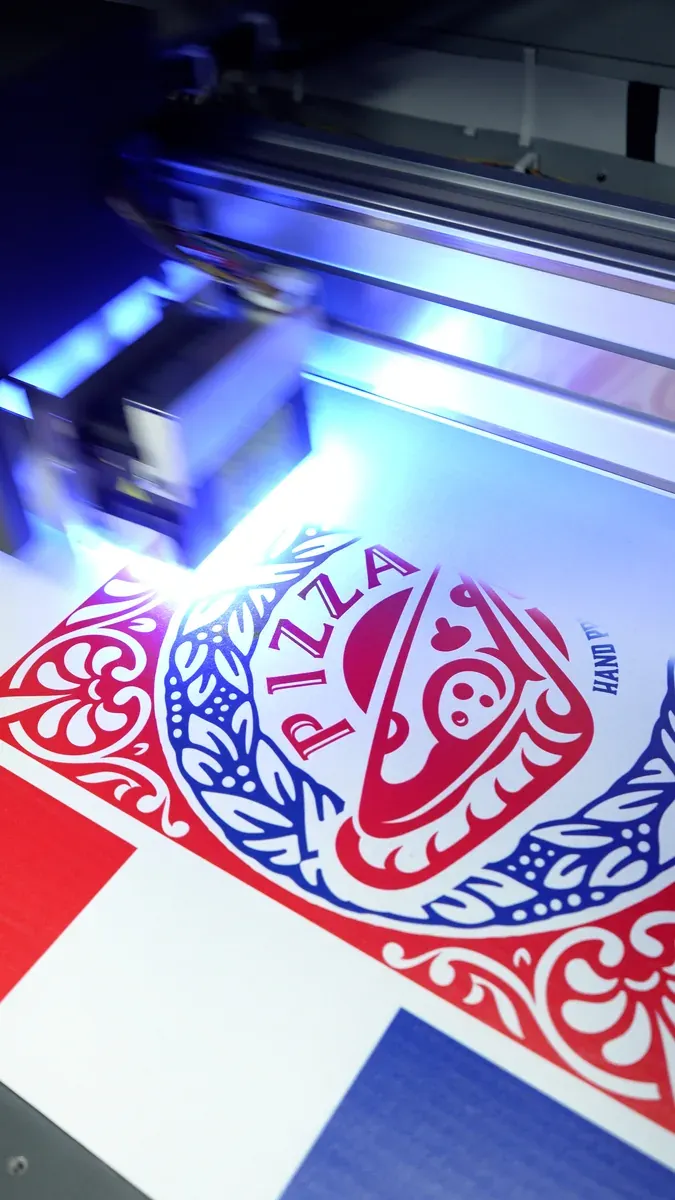

Packaging
-

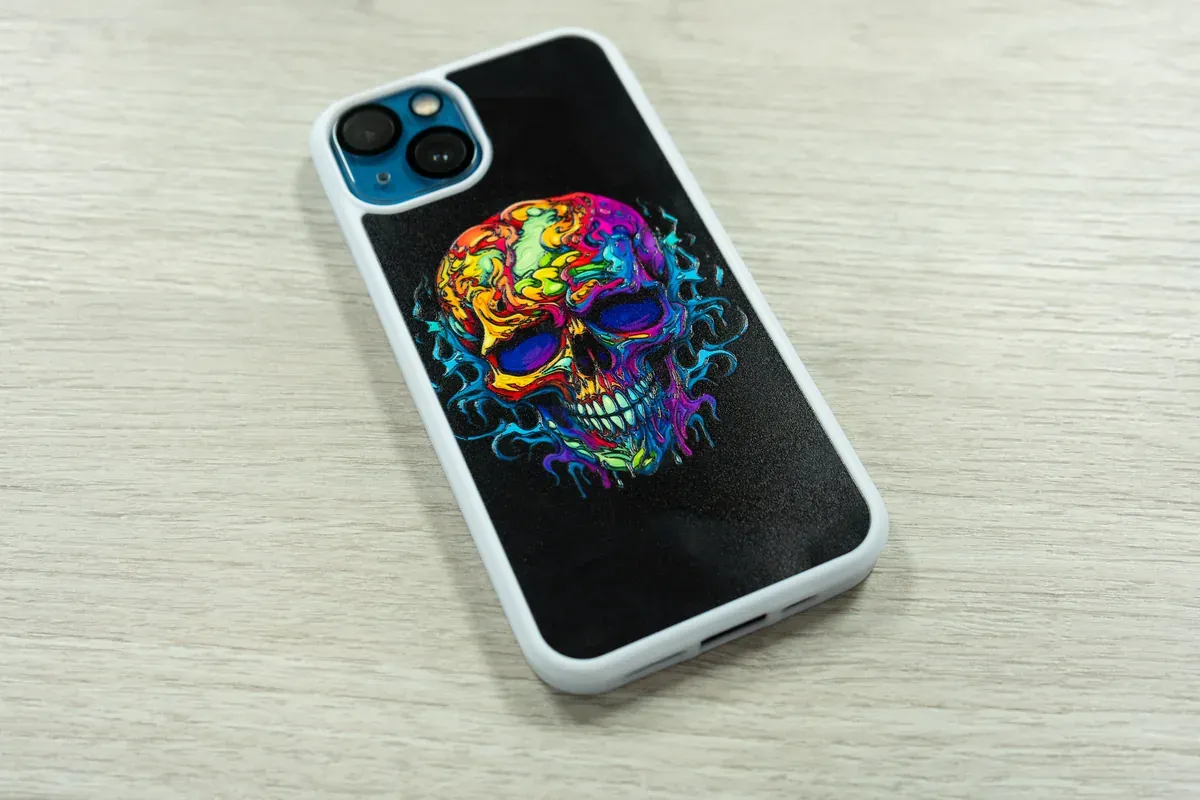

Phone Cases
-
Awards
