Brother GTXpro

The hybrid printer designed for versatility, built for reliability.

Since 2005, Brother has been known for making garment printers designed from the ground up. We manufacture our own firmware, software and print heads. Coupled with our specially formulated inks and advanced features, the GTXpro hybrid DTG/DTF printer provides a powerful tool to help you to grow your business.

Download GTXpro Brochure
Printing with the GTXpro


Printing Method

Direct inkjet garment printer

Printing Applications

Direct to garment and direct to film printing

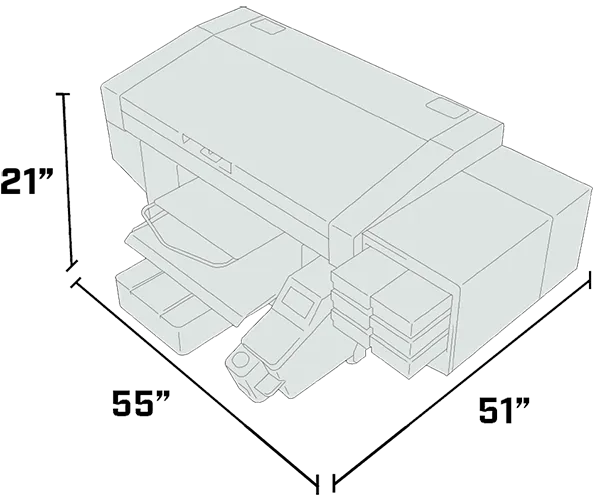

Machine Size

55”(W) x 51”(D) x 21.7”(H) (1400mm x 1300mm x 550mm)

Machine dimensions

Machine Weight

265lb (approx.120kg) including platen; not including the stand

Platen Sizes

Adult platen
Adult Platen

14“ x 16“ / 35,6cm x 40,6cm

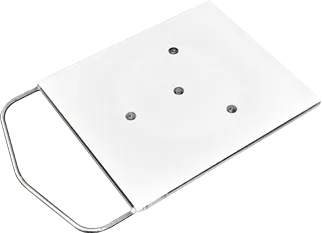

Youth platen
Youth Platen

10“ x 12“ / 25,4cm x 30,5cm

Baby platen
Baby Platen

7“ x 8“ / 17,8cm x 20,3cm

Maximum Print Size is 16” x 21” / 40,6cm x 53,3cm

View all platen sizes

Included Platen Size

14” x 16” (35,6cm x 40,6cm)

Ink Type

Water-based pigment ink

Innobella ink CMYK + White ink

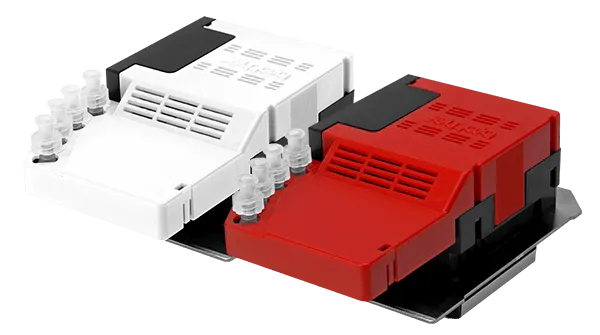

Ink-Head Type

On demand piezo head

CMYK + White ink

Number of Ink-Heads

2 print heads / 8 ink channels

Print Resolution

1200 dpi x 1200 dpi

Print Mode

Single or double for CMYK. Underbase and highlight for white.


CMYK + White ink

Data output

Printer driver (USB, File output, LAN)

Power supply

AC 100V-240V, 50/60Hz ± 1Hz

Power consumption

0.8A(average) (Reference: 0.3A - during circulation)

Ink cure

Heat press machine can be used at 356°F (180°C) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 320° (160°) for three and a half minutes. Time and temperature may vary depending on which manufacturer's dryer is used.


Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer's instructions. Pre-treatment is necessary for white ink.



macOS® Big Sur to macOS® Ventura, Windows 8.1 (64-bit), Windows 10 (64-bit) and Windows 11 (64-bit)

OS compatibility icons


USB2.0, LAN(10BASE-T, 100BASE-TX, 1000BASE-T), USB Flash Memory(Under 32GB, FAT32 format)

Driver operating conditions

2GHz CPU (minimum recommendation), 4GB RAM

Display resolution

XGA(1024x768) (minimum recommendation)

Recommended applications

CorelDRAW® 2018/2019 (Windows), Adobe® Photoshop CS6/CC, Adobe® Illustrator CS6/CC
