Brother GTXpro

A dedicated roll to roll DTF printer designed with high volume printing in mind.

Keep your business looking forward with Brother. Our GTX R2R printer is production ready and operator friendly, with a smartly engineered bulk ink system that helps you fill your larger orders and grow your business.

Download R2R Brochure
GTX R2R printer high speed mode is up to 65% faster

Specifications

Printing Method

Direct inkjet garment printer

Printing Applications

Roll to roll

Machine Size

GTXpro - 96" L x 55" W x 48" H | GTXpro B - 96" L x 70" W x 48" H

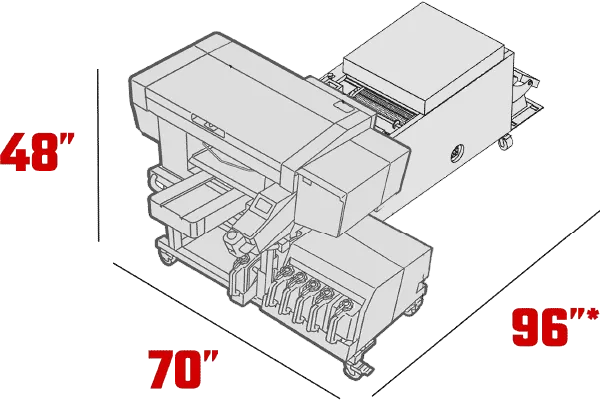

Machine dimensions

* Based on recommended distance between Printer and Powder Unit

Machine Weight

GTXpro R2R (with PowDR) Approx. 665 lbs

GTXpro B R2R (with PowDR) Approx. 764 lbs

Included Roll Attachment

Roll attachment is able to hold a roll with the maximum width of 40cm

Ink Delivery

Advanced Ink System

Advanced Ink System logo

Ink Type

Water-based pigment ink

Innobella ink CMYK + White ink

Number of Print Heads

2 Print heads: 1 for White Inks, 1 for CMYK Inks

CMYK + White ink

Print Resolution

1200 dpi x 1200 dpi

Print Mode

CMYK Only. CMYK+White, White Ink Only

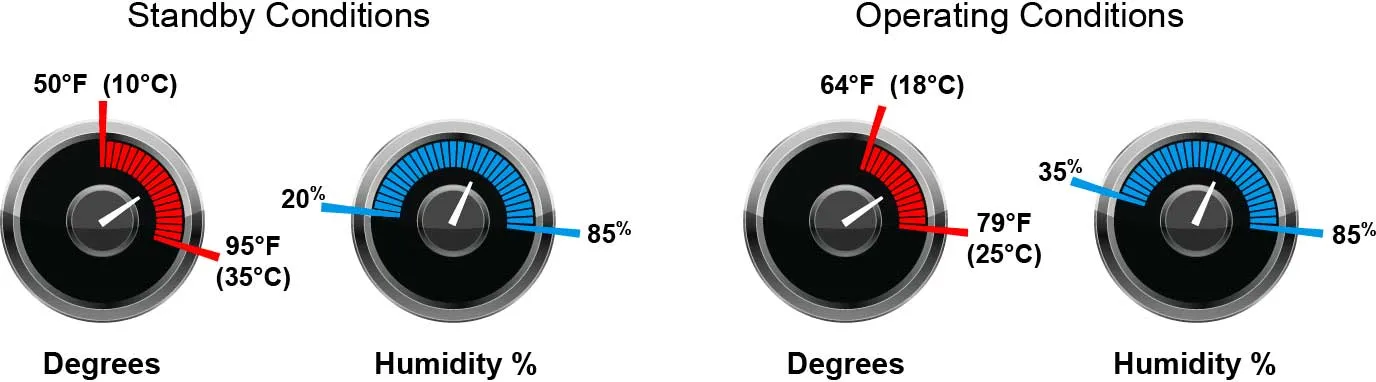

Environment

CMYK + White ink

Data output

Printer driver (USB, File output, LAN)

Power supply

Printer - Single-phase 100-240 V, 50/60 Hz; 80 W

PowDR - Single-phase 200-240 V, 50/60 Hz; 3300 W

Power consumption

0.8A(average) (Reference: 0.4A - during circulation)

Adhesive Application

Innovative Powder Circulation System
Our state-of-the-art powder circulation system ensures precise measurement of the powder directly on the film. This means that the powder consumption is precisely dosed so that you don't use too much or too little powder.

Automatic Powder Addition
The PowDR machine automatically adds powder based on consumption. No manual addition of powder from bottom to top is required. All you need to do is check the powder refill tank level at the start of each day.

Ink cure

Curing settings for PowDR unit is 2-3 minutes at 212° F-250° F (recommended bulb setting 51).

GTX Graphics Lab logo

Software

OS

Windows 10 (64-bit) and Windows 11 (64-bit)

OS compatibility icons

Interface

USB2.0, LAN(10BASE-T, 100BASE-TX, 1000BASE-T), USB Flash Memory(Under 32GB, FAT32 format)

Driver operating conditions

2GHz CPU (minimum recommendation), 4GB RAM

Display resolution

XGA(1024x768) (minimum recommendation)

Recommended applications

Digital Factory Apparel Direct to Film Edition or GTX Graphics Lab Basic Film

GTX Graphics Lab logo
